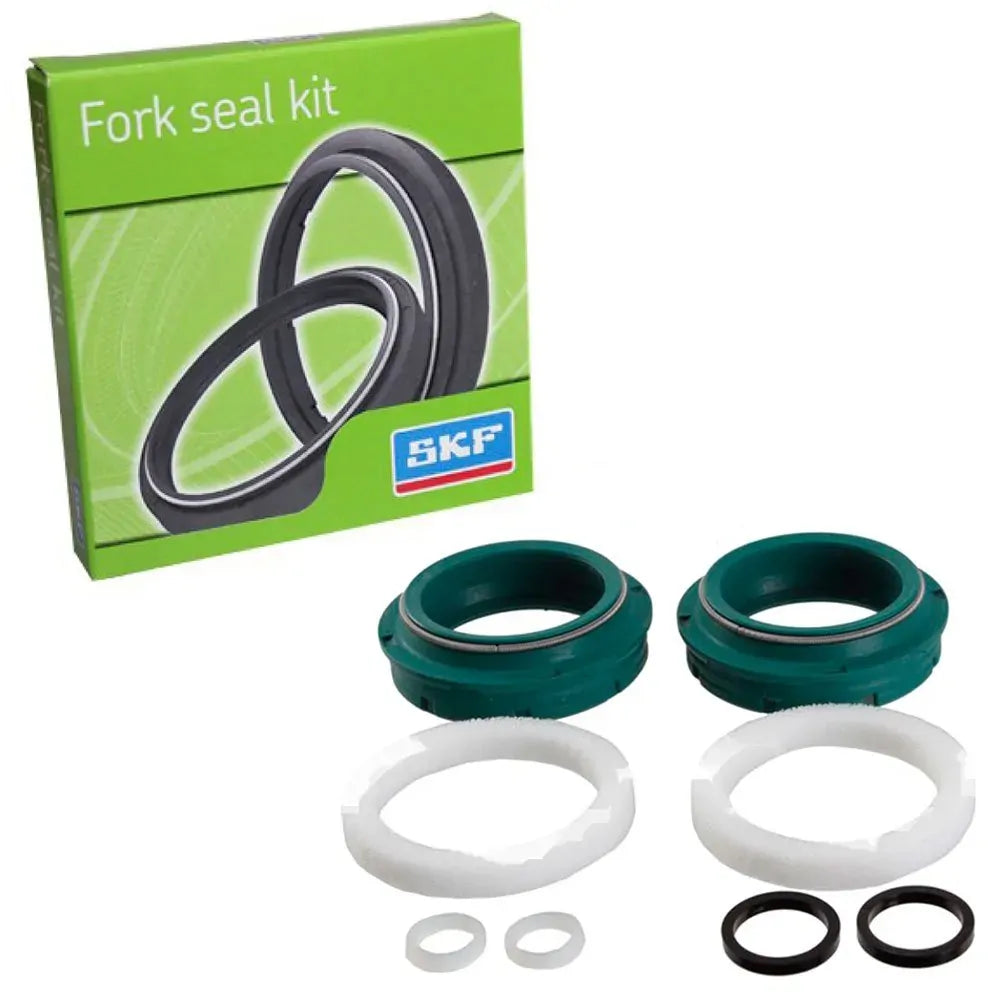

Fox SKF Low Friction Dust Wiper Seal Kit

Fox SKF Low Friction Dust Wiper Seals are engineered to deliver smooth suspension performance, dependable sealing and improved durability in demanding off-road conditions. Developed using SKF’s extensive experience in high-performance motorcycle and bicycle suspension seals, each kit is designed specifically for compatible Fox forks.

The integrated sealing design combines an oil-retaining lip with an external dust-wiping lip. This helps prevent lubricant from escaping while limiting the entry of water, mud and abrasive contaminants into the fork lowers.

A specially developed, self-lubricating elastomer maintains low and consistent friction throughout the seal’s service life. By reducing stiction between the seals and upper tubes, the fork can respond more freely to small impacts and track the ground more effectively, improving sensitivity, traction and overall riding comfort.

Key Features

• Low-friction seal system developed by SKF
• Designed specifically for compatible Fox suspension forks
• Integrated dust-wiping lip limits dirt and water ingress
• Oil-sealing lip helps retain lubrication inside the fork
• Self-lubricating elastomer maintains smooth operation
• Reduces stiction and initial breakaway friction
• Improves small-bump sensitivity and riding comfort
• Helps reduce component wear and air suction
• Supports longer and more consistent fork performance
• Compatible with a wide range of original and aftermarket suspension oils
• Suitable for trail, all-mountain, enduro and downhill use

Improved Sealing and Suspension Performance

Mountain bike fork seals must balance two competing requirements: they need to keep contaminants outside the fork without generating excessive friction against the moving upper tubes.

SKF’s application-specific seal geometry provides effective protection from water and dirt while maintaining low, consistent operating friction. This allows the fork to move more readily through the beginning of its travel and helps keep the internal lubrication oil cleaner between services.

Compatibility

Choose the kit that matches your Fox fork’s stanchion diameter:

• 32mm: Fox 32 forks
• 34mm: Fox 34 forks
• 36mm: Fox 36 forks
• 38mm: Fox 38 forks

Confirm compatibility using the fork model, model year and four-digit Fox ID code before ordering. Seal sizes are not interchangeable.

Fox Part Numbers

• 32mm: 803-00-944
• 34mm: 803-00-945
• 36mm: 803-00-933
• 38mm: 803-01-493

Installation

These seals are intended for installation during a lower-leg service. Correct fitting requires the fork lowers to be removed and the seals installed using an appropriately sized driver.

Always use the suspension fluid type and bath-oil volume specified for the exact fork model. Fox recommends that suspension servicing be completed by a suitably trained bicycle technician.

Kit contents can vary between fork sizes and production versions. Check the supplied components before beginning the service.

Product Details

• Product type: Suspension fork seal kit
• Brand: Fox
• Seal technology: SKF
• Application: Fox suspension fork lower-leg servicing
• Available sizes: 32mm, 34mm, 36mm and 38mm
• Intended use: Mountain biking
• Design priorities: Low friction, contamination protection and durability
