Easton EC90 SL Carbon Crankarms

Easton EC90 SL Carbon Crank Arms

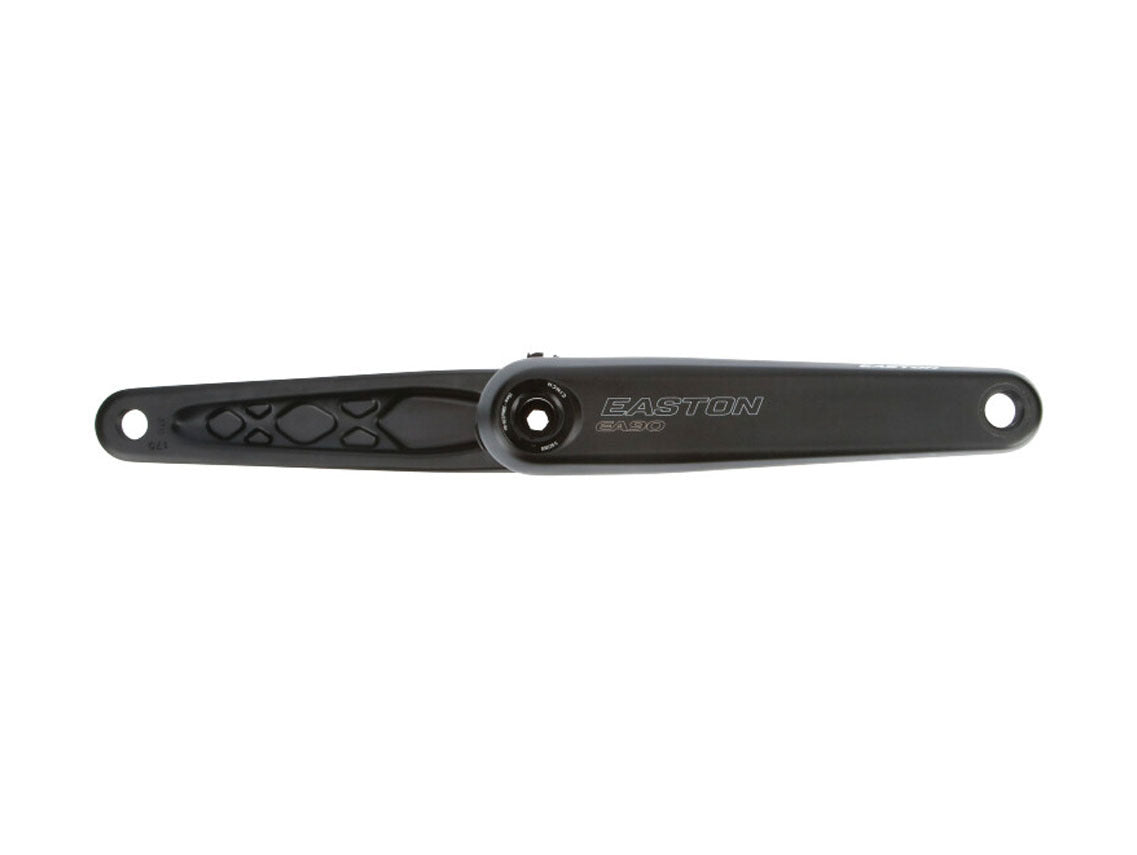

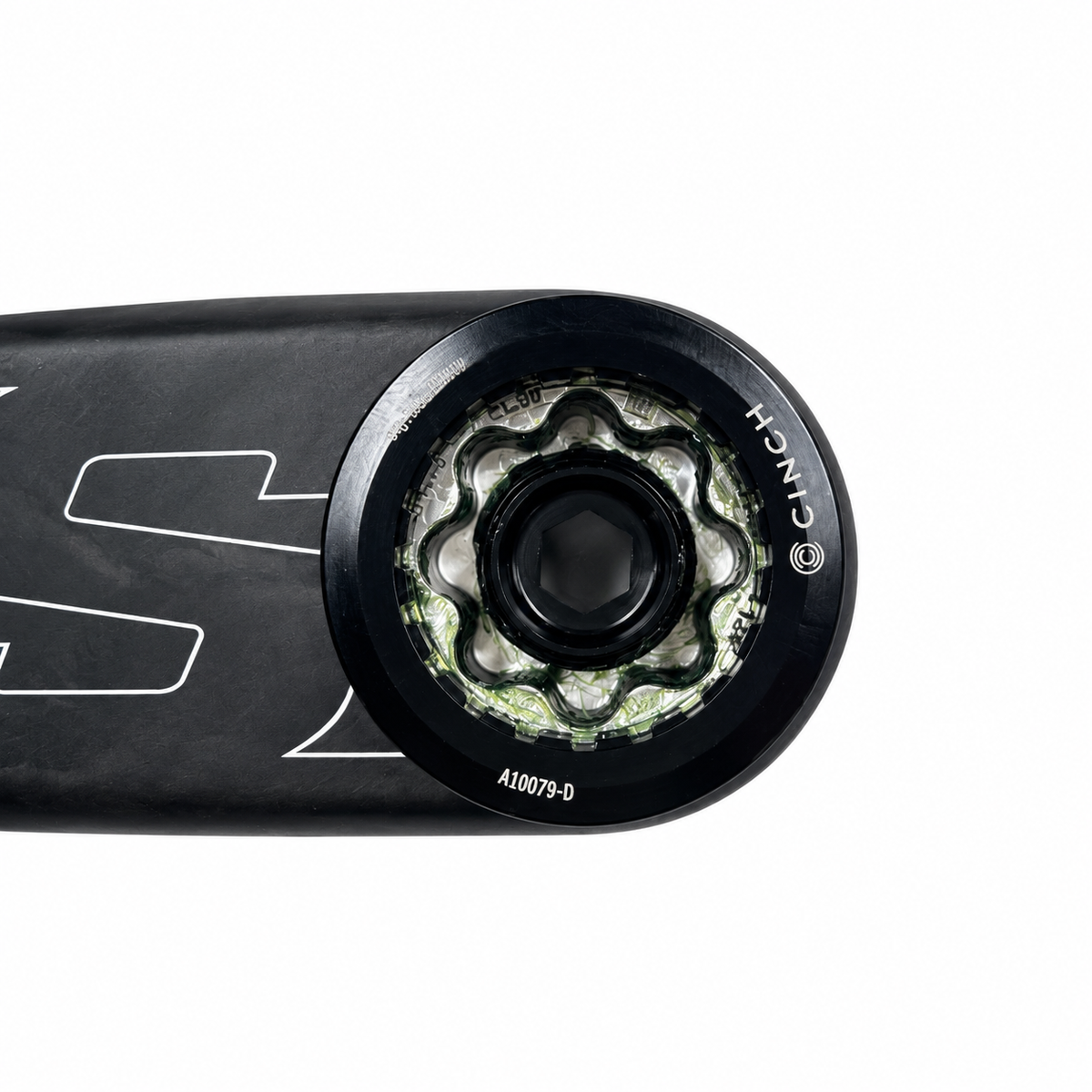

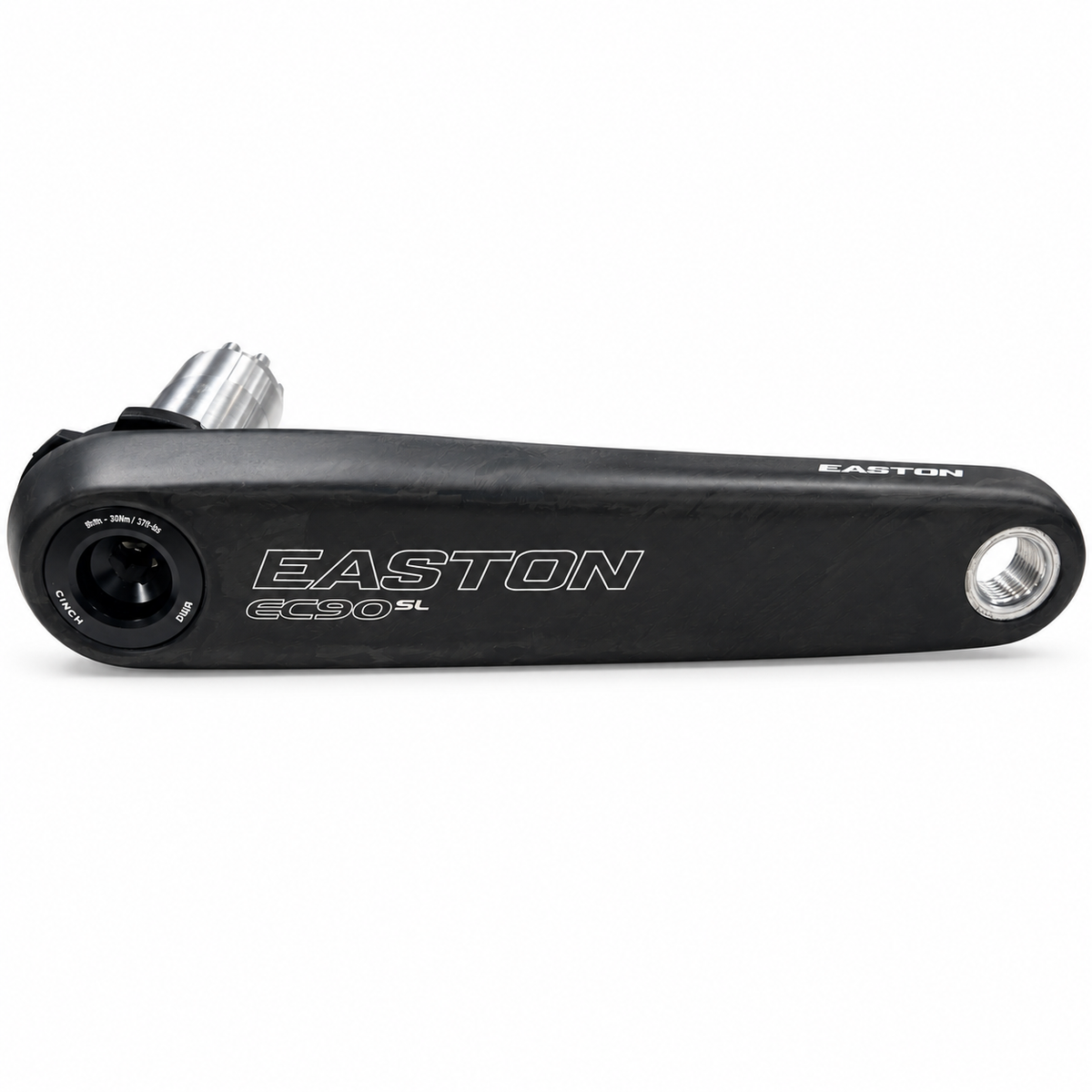

Build your next road, gravel or cyclocross setup around lightweight carbon crank arms with the flexibility to choose your gearing. The Easton EC90 SL combines EC90 carbon arms with a modular CINCH interface, accepting a compatible 1x direct-mount chainring or 2x spider and chainring assembly.

Whether you’re refreshing an existing bike or assembling a custom build, the interchangeable mounting system lets you change your gearing without replacing the crank arms.

Key features

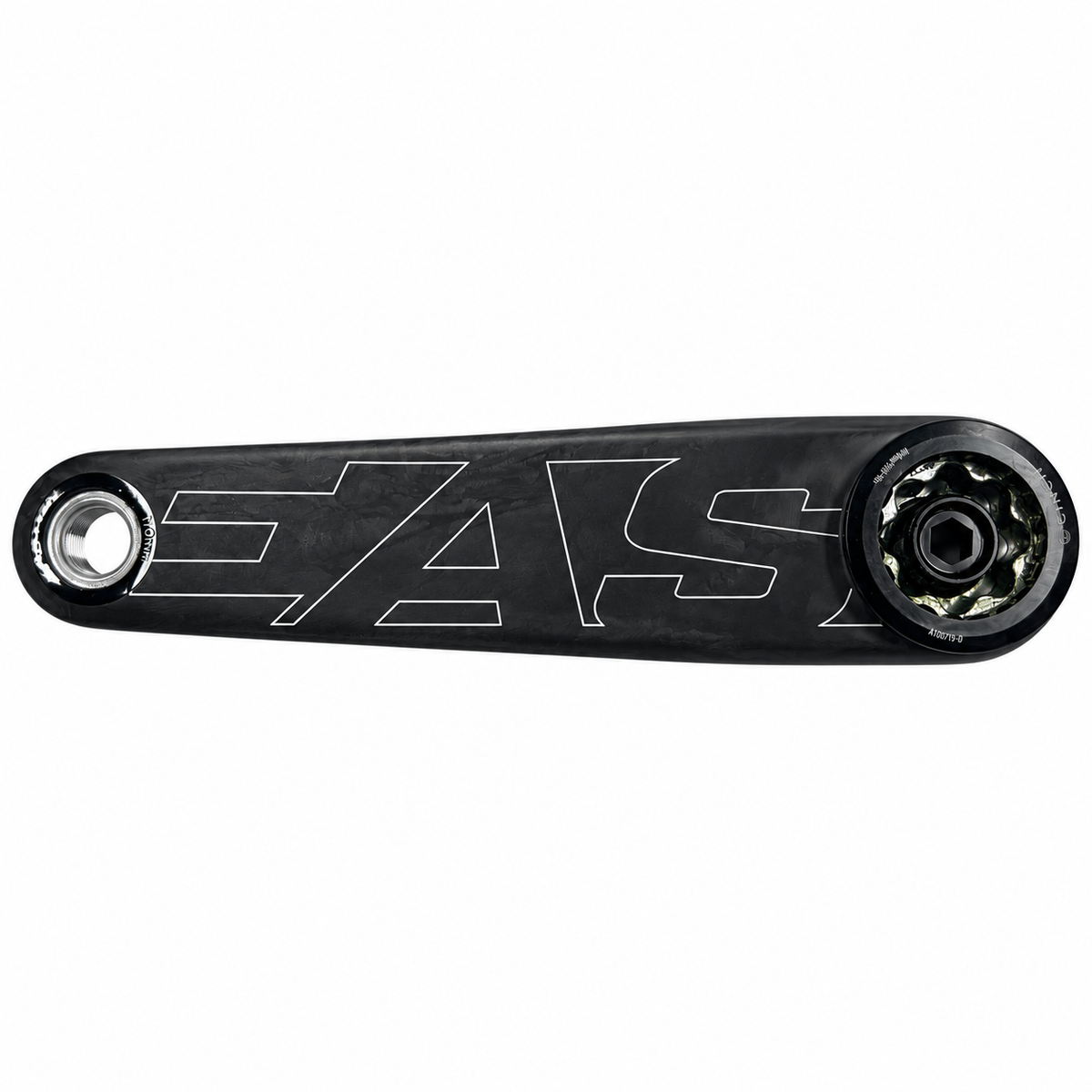

• EC90 carbon construction: lightweight crank arms with a matte carbon finish.
• Flexible gearing: compatible with suitable CINCH 1x direct-mount rings and 2x spider assemblies.

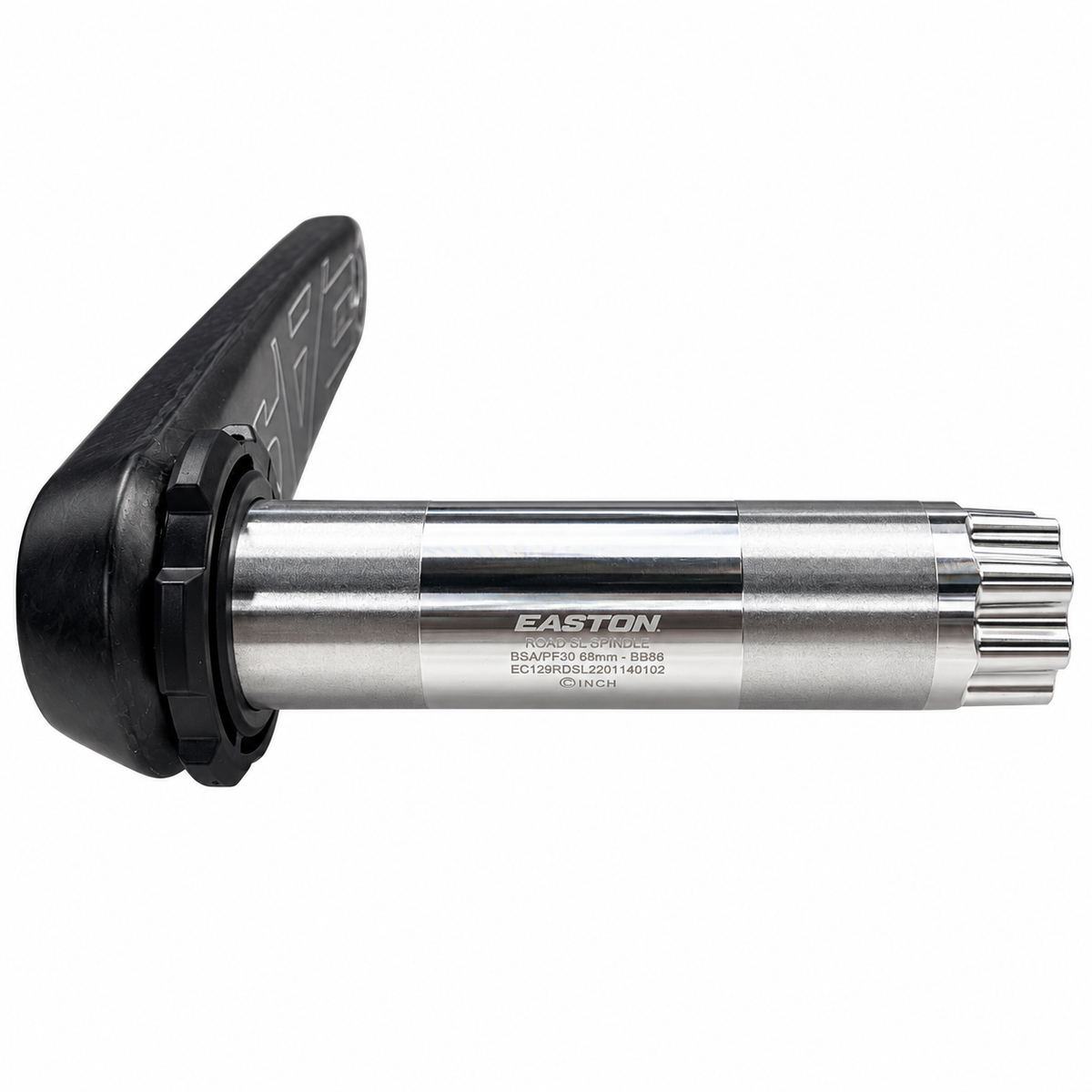

• 30mm spindle: supplied assembled with the crank arms.
• Crank-length options: choose 170mm or 172.5mm to suit your fit.
• Chainline: 47mm in Easton’s specified 1x configuration or 45mm with its 2x spider.
• Q-factor: 149mm with washers.

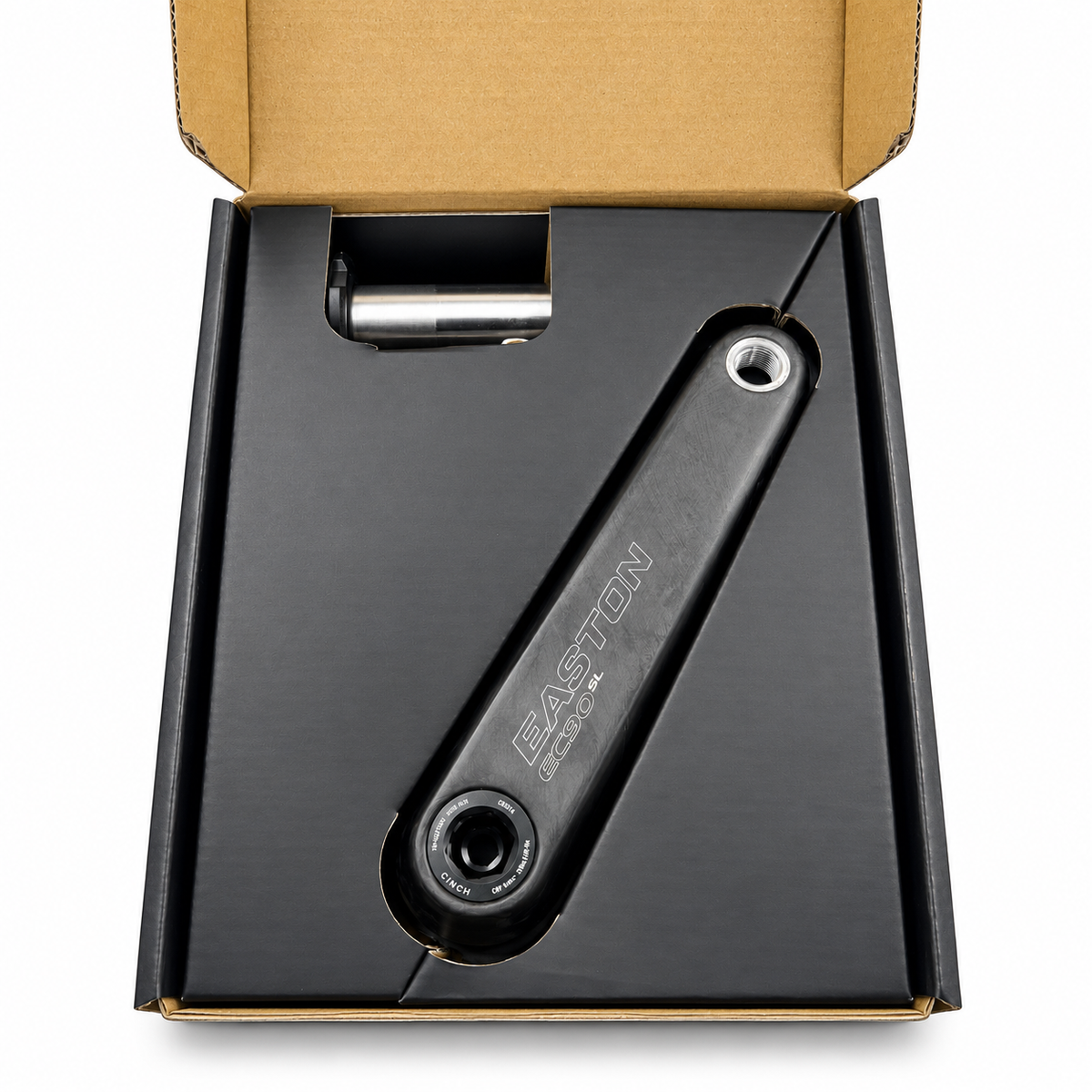

What’s included?

Crank arms and spindle. Chainrings, spider assembly and bottom bracket are sold separately.

Will these fit my bike?

These cranks require a bottom bracket suitable for both your frame and the 30mm spindle. Chainring selection must also match your chain, drivetrain and required chainline.

Your existing bottom bracket may need replacing when changing from another crank system.

Unsure what you need? Contact The Odd Spoke with your bike’s make, model, year and drivetrain. Our Dural team can help you choose the correct parts and discuss workshop installation.
