Before using this e-bicycle, check the applicable local laws relating to your intended use of the e-bicycle on roads and road related areas.
Enquire today to place your order in! (20% deposit)
Size M in store NOW!
(Sizes L, XL available from supplier warehouse)
Light Yet Limitless

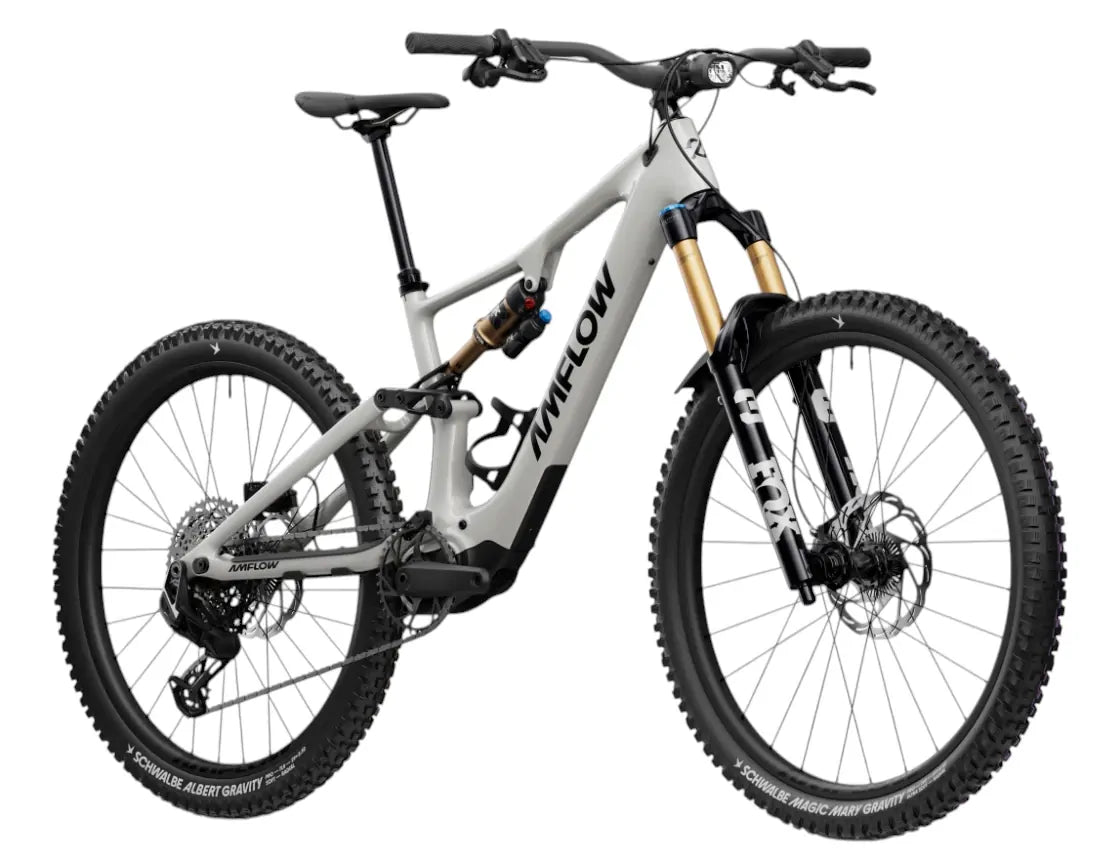

The Amflow PX Carbon combines lightweight carbon construction with full-power e-MTB performance. Powered by the Avinox M2S drive unit delivering up to 150Nm of torque and a 700Wh integrated battery, it’s built to tackle demanding climbs and technical descents with confidence. Featuring 160mm front travel, 150mm rear travel and highly adjustable geometry, the PX Carbon offers a versatile, responsive ride for serious trail and enduro adventures.
Amflow PX Carbon Pro Specs
Frame
Amflow PX Carbon Pro Frame
Moonstone Gray
40 adjustable geometry configurations
Compatible with 27.5″ and 29″ rear wheels
E-Bike System
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 700Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Rear shock
FOX Float X Factory (MY 2027)
2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock
Fork
FOX 36 Factory (MY 2027)
160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
Drivetrain
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Rocker Controller
Cassette: SRAM XS-1295 Eagle Transmission Cassette 10-52T
Chain: SRAM X0 Eagle Transmission Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Amflow Dropper Remote Lever Mounting Bracket
Wheels
Amflow XMC-30 Mullet Version
Front Rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready
Rear Rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
Tyres
Front: Schwalbe Magic Mary, 29×2.5 Gravity Pro, Radial
Rear: Schwalbe Albert, 27.5×2.5 Gravity Pro, Radial
Handlebar
Amflow Enduro Carbon Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grip 2 Lock-on Grips
Stem
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Saddle
Amflow Mountain Saddle Titanium
Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
M/L Frame: 190mm
XL Frame: 210mm
XXL Frame: 230mm
Accessories
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
5/10mm Dropper Post Travel Reducing Spacer
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
Quick Start Guide
IoT Nano SIM Card
Schwalbe Clik Valve Conversion Set
FOX 36 Mud Guard (Short)
