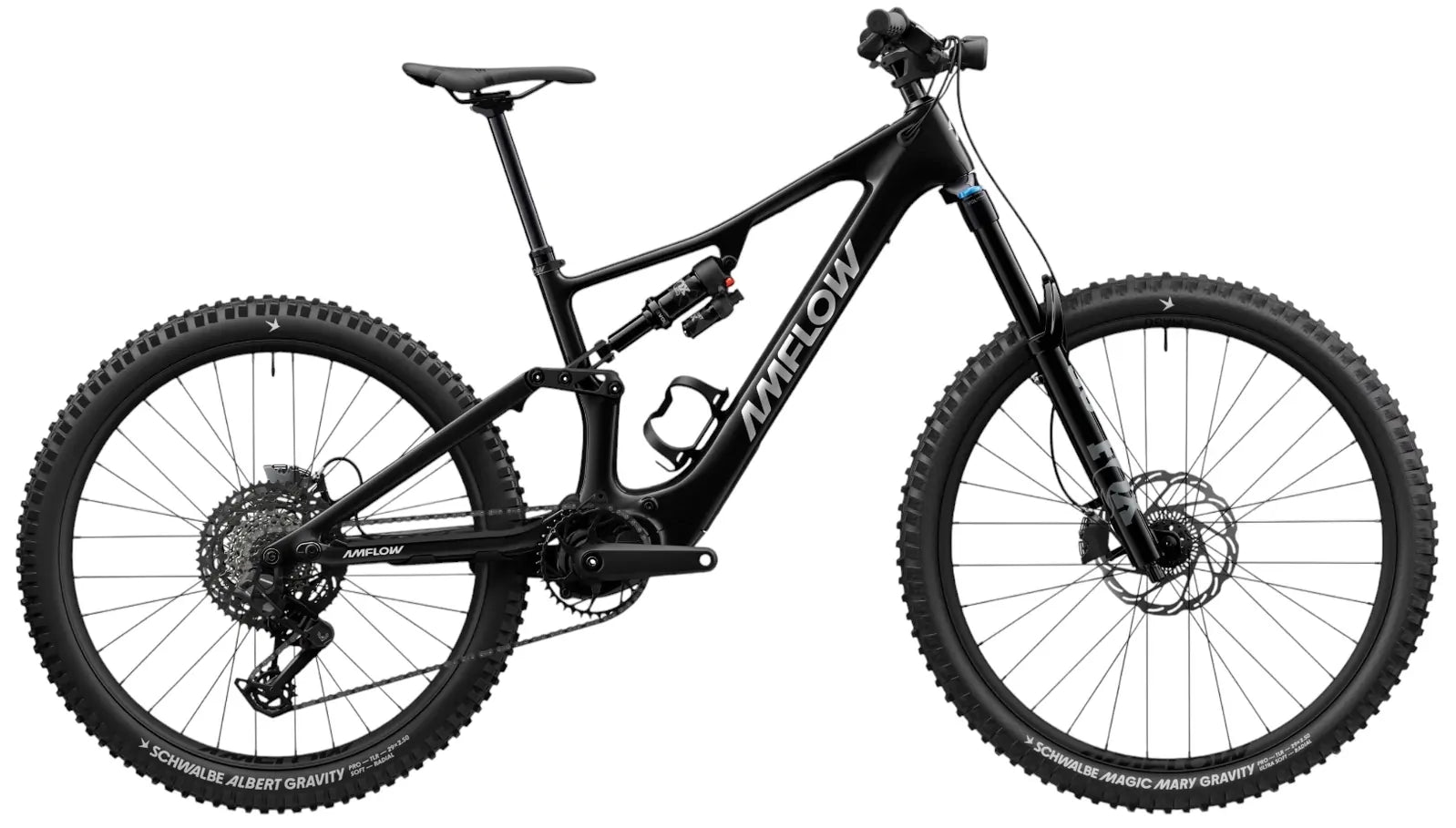

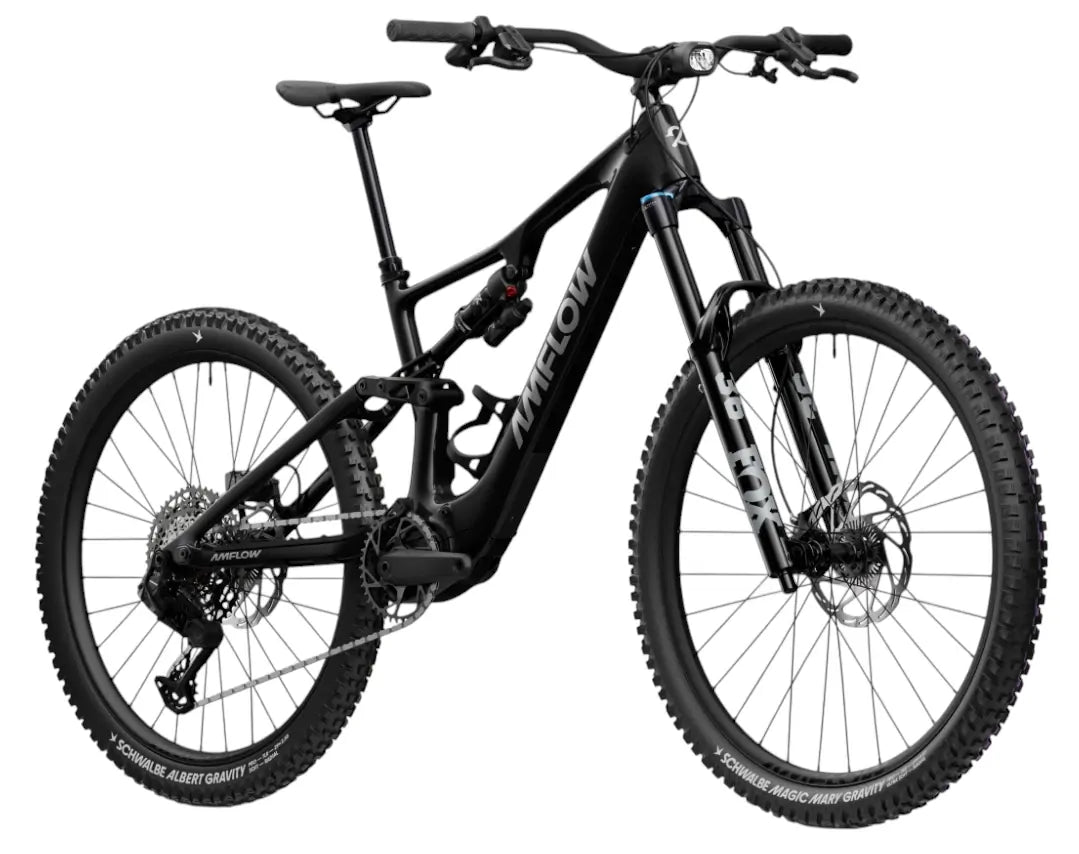

2027 Amflow PX Carbon E-MTB - Phantom Black





















Amflow PX Carbon



Before using this e-bicycle, check the applicable local laws relating to your intended use of the e-bicycle on roads and road related areas.



Frame

Amflow PX Carbon Frame

Phantom Black

40 adjustable geometry configurations

Compatible with 27.5″ and 29″ rear wheels



E-Bike System

Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Integrated Battery: 700Wh

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W



Rear shock

FOX Float X Performance (MY 2027)

2-position lever, custom tune, LSR adjustment, 210×55mm, air shock



Fork

FOX 36 Performance (MY 2027)

160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset



Drivetrain

Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur

Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox

Shift Levers: SRAM AXS Pod Controller

Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T

Chain: SRAM Eagle 70 Transmission Flattop Chain

Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)



Brakes

Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers

Magura Sensor Rotor (203mm, 2.5mm)



Wheels

Amflow XMA-30 Mullet Version

Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready

Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready

Spokes: SAPIM E-Light

Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt

Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG



Tyres

Front: Schwalbe Magic Mary, 29×2.5 Gravity Pro, Radial

Rear: Schwalbe Albert, 27.5×2.5 Gravity Pro, Radial



Handlebar

Amflow Enduro Alloy Handlebar

40mm Rise, 800mm Width, 35mm Diameter

5-degree upsweep, 9-degree backsweep



Grips

Amflow Enduro Grip 2 Lock-on Grips



Stem

Amflow Mountain Bike Split Stem

Length: 35mm

Clamping Diameter: 35mm



Saddle

Amflow Mountain Saddle



Dropper Post

Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)

M/L Frame: 190mm

XL Frame: 210mm

XXL Frame: 230mm



Accessories

Avinox Front Light

Amflow Bottle Cage

Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)

5/10mm Dropper Post Travel Reducing Spacer

Rear Light

Torque Wrench

Clear Frame Protection Film

Shock Pump

Quick Start Guide
