(Sizes M & L available from supplier warehouse)

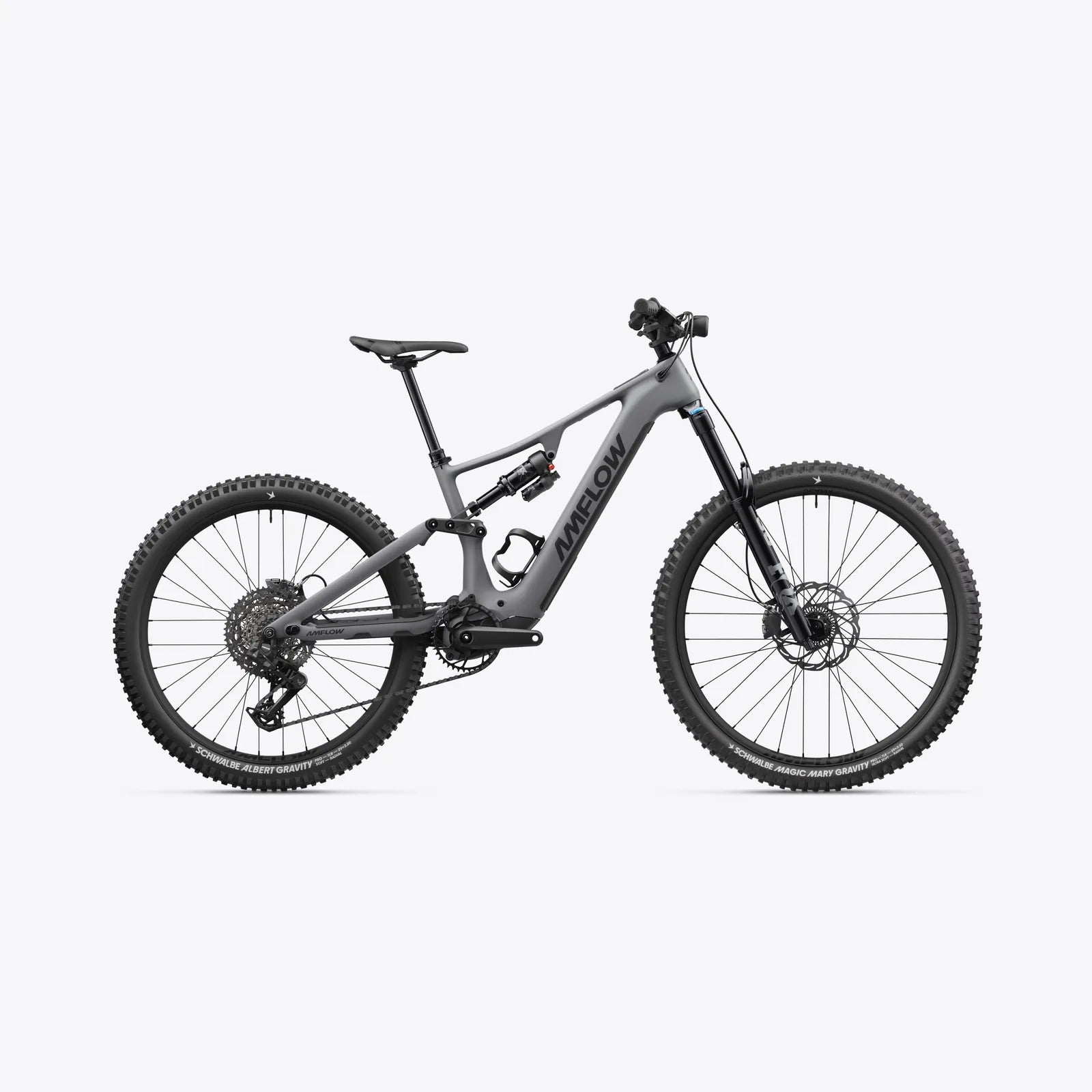

The Amflow PR Carbon Pro 800Wh is a full-power carbon electric mountain bike built for riders who want serious climbing support, adjustable trail geometry, and long-range practicality in one highly capable package.
At the centre of the PR Carbon Pro is the Avinox M2S drive unit, delivering up to 150Nm of torque and 1500W peak power in Boost mode, while remaining impressively quiet and controlled on the trail. Amflow pairs that power with a removable 800Wh battery, giving riders the freedom to charge off the bike, swap batteries, and push deeper into longer rides.
The full-carbon frame is designed for strength, rigidity and composure, with Amflow quoting a frame weight of approximately 2.9kg. Its standout feature is adjustability: the PR platform offers up to 40 geometry combinations, using adjustable headset cups, bottom bracket settings and chainstay adjustment to tune the bike for different terrain and riding styles.
The Pro model steps up the ride package with performance-focused trail components, including a FOX 36 Performance 160mm fork, FOX Float X Performance rear shock, SRAM Eagle Transmission electronic shifting, Magura Gustav Pro 4-piston brakes, and a mullet wheel setup with a 29” front and 27.5” rear.
Smart integration completes the package, with a 2-inch OLED control display, wireless controllers, SmoothShift functionality, integrated lighting, and Apple Find My tracking on PR models.
Amflow PR Carbon Pro Frame
Basalt Gray
40 adjustable geometry configurations *
Compatible with 27.5″ and 29″ rear wheels
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
Avinox M2S Drive Unit: Nominal 130N·m, peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Removable Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
FOX Float X Performance
2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
FOX 36 Performance
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Amflow Enduro Grip 2 Lock-on Grips
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Amflow Mountain Saddle
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
M Frame: 190mm
L/XL Frame: 210mm
XXL Frame: 230mm
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys × 2
5/10mm Dropper Post Travel Reducing Spacer
Quick Start Guide
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
