The 5D EVO retains all the aspects that made the 5D family unique, starting from the 10° forward angle, useful for improving breathing during the toughest climbs, to the integrated cable routing, introduced in 2019 with the ACR version. However, it's updated to be even lighter, weighing only 320g, while simultaneously increasing stiffness and vibration absorption capacity, with the goal of efficiently transferring maximum control of the bike over every inch of asphalt for the cyclist. Aerodynamics have also been enhanced, lowering the stack by 1.5cm.

But we didn't stop at creating the perfect handlebar for racing; we wanted it to be the best for passionate cyclists who want to grasp the dream of riding like their champions, without having a product overly focused on pure performance. That's why we modified the ergonomics, introducing an additional size, adjusting the grip depth (L-XL), in this way everyone can feel perfectly comfortable on the bike


Features

  • Aerodynamic integrated Cable Routing (ACR)
  • All carbon construction
  • Di2 compatible with integrated junction box compartment and wiring conduits
  • 5mm offset drops providing wider, more stable sprinting platform and allowing faster transitions from hoods to drops
  • Stem angle: -6°

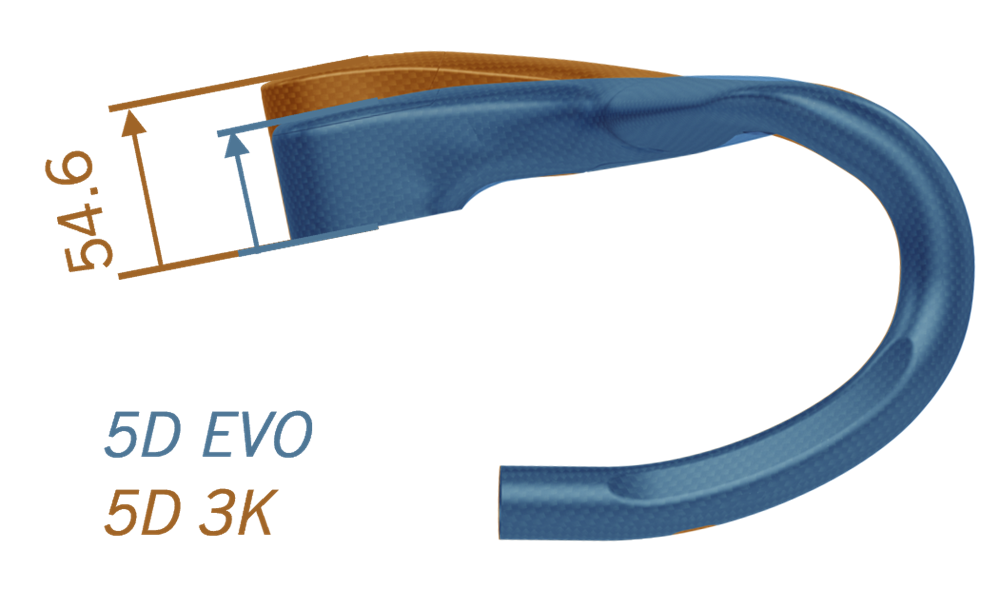

  • Compact 125mm drop
  • 80mm reach
  • Forward angle 10°


SIZES EVO-L

  • 6° X 90×380mm (c-c)
  • 6° X 90×400mm (c-c)
  • 6° X 100×380mm (c-c)
  • 6° X 100x400mm (c-c)
  • 6° X 100x420mm (c-c)
  • 6° X L110×W400mm (c-c)
  • 6° X L110×420mm (c-c)
  • 6° X L120×W400mm (c-c)


SIZES EVO-XL

  • 6° X L100×W440mm (c-c)
  • 6° X L120×W420mm (c-c)
  • 6° X L120×440mm (c-c)
  • 6° X L130×W420mm (c-c)
  • 6° X L120×440mm (c-c)
  • 6° X L140×W420mm (c-c)

FINISH

  • Carbon 3K finish
  • Colour graphics - black

WEIGHT

  • 320 grams (110 x 420mm)
SKU 670-045502
Brand Vision
Shipping Weight 1.1000kg
Shipping Width 0.490m
Shipping Height 0.170m
Shipping Length 0.250m
Shipping Cubic 0.020825000m3
