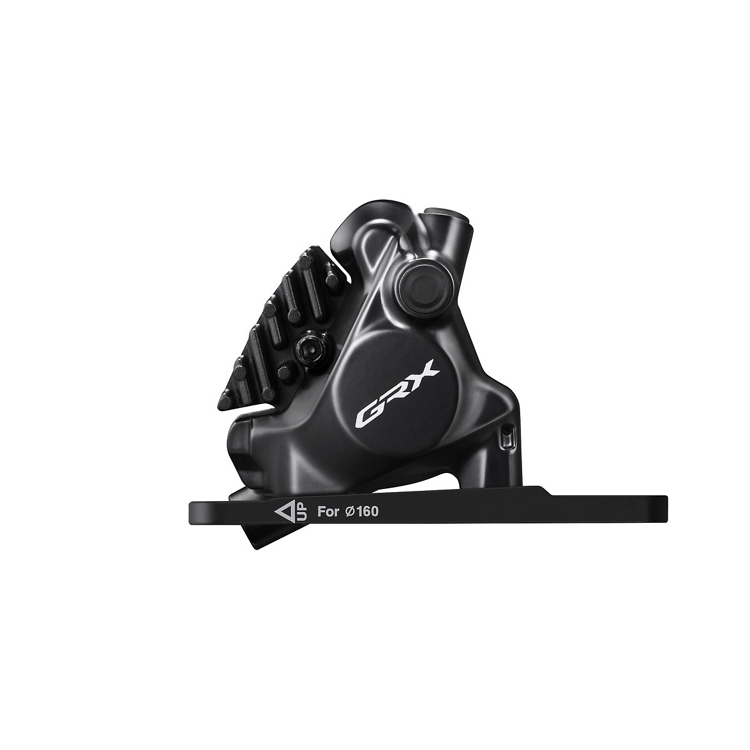

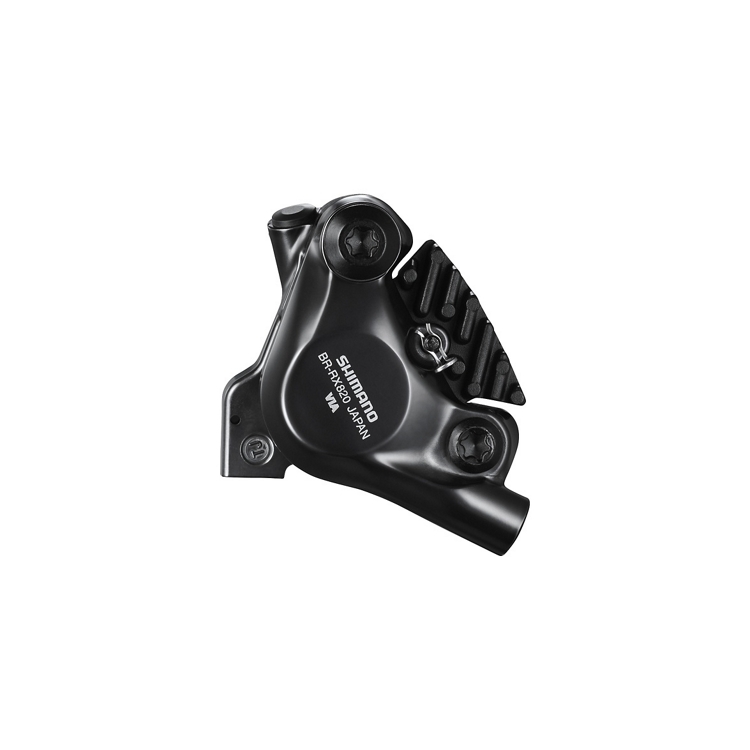

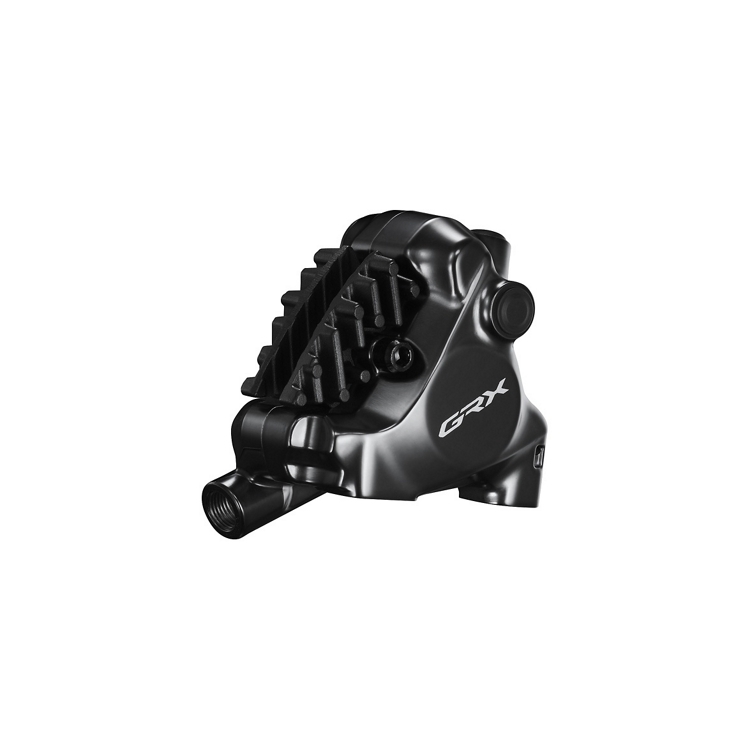

GRX - FLAT MOUNT - BRAKE CALIPER

BR-RX820

Enhanced control with better modulation and quicker initial braking point

The GRX BR-RX820 disc brake caliper brings a new level of control to gravel cycling with enhanced modulation and a quicker initial braking point. And despite its smaller construction, the system is quieter and easier to maintain.

Features

  • 10% wider pad clearance decreases brake noise
  • Maintenance-friendly bleeding process

Specifications

MODEL NO BR-RX820
SERIES GRX 12-speed
Color Series color
Average weight 146 (Front) 136 (Rear)
Brake type Hydraulic disc brake
Brake hose (kit) SM-BH90-JK-SSR
Hose joint Straight
Brake hose color (kit)|1 Black
J-Kit spec (for OEM)
ICE TECHNOLOGIES pad compatible caliper
Pad|Standard 1 K05S-RX Resin (w/o fin)
Pad|Standard 2 L05A-RF Resin (w/ fin)
Pad|Option 1 L04C-MF Metal (w/ fin)
Fixing screw spec for rear mount|10 mm mount
Fixing screw spec for rear mount|15 mm mount
Fixing screw spec for rear mount|20 mm mount
Fixing screw spec for rear mount|25 mm mount
Fixing screw spec for rear mount|30 mm mount
Fixing screw spec for rear mount|35 mm mount
Recommended brake lever ST-RX820 ST-RX820-LA BL-RX820-L
Recommended disc brake rotor RT-CL800
Oil SHIMANO mineral
ONE WAY BLEEDING
Mount type Flat mount
Piston 2
Caliper fixing screw|Tool size 4 mm
Caliper fixing screw|Anti loosen method Screw fix pin+Snap ring
Pad mount Pad axle
SKU IBRRX820RDRF
Barcode # 4550170241612
Brand Shimano
Shipping Weight 0.2000kg
Shipping Width 0.110m
Shipping Height 0.060m
Shipping Length 0.070m
Shipping Cubic 0.000462000m3
