Superior chain retention and power transfer for fun riding over the rough stuff

Grow your confidence riding hard over the rough stuff with this crankset's wide-range gearing and seamless pedaling.

Features

  • 2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently
  • Special gear tip shape improves chain engagement and retention for smooth riding over rough terrain
    • DYNAMIC CHAIN ENGAGEMENT+

Product Specifications

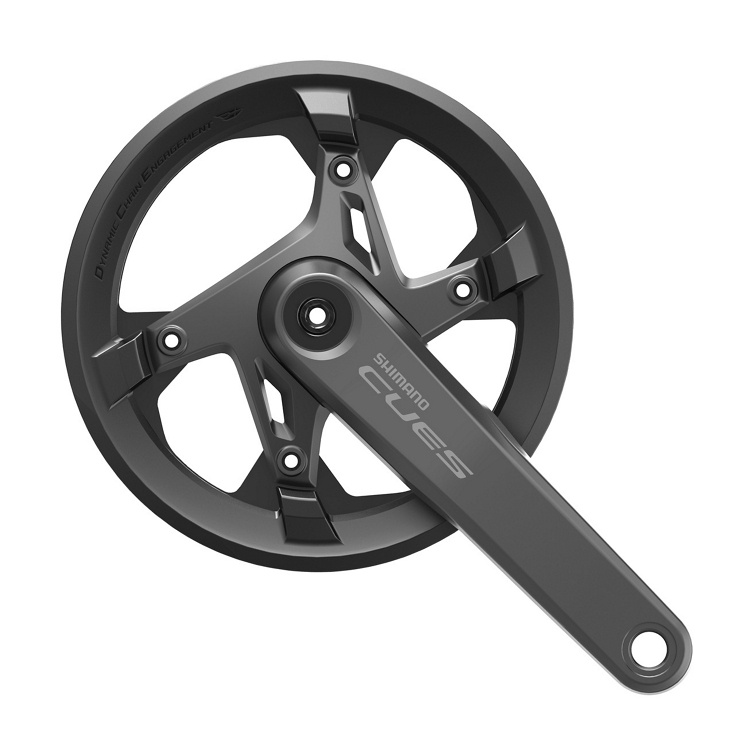

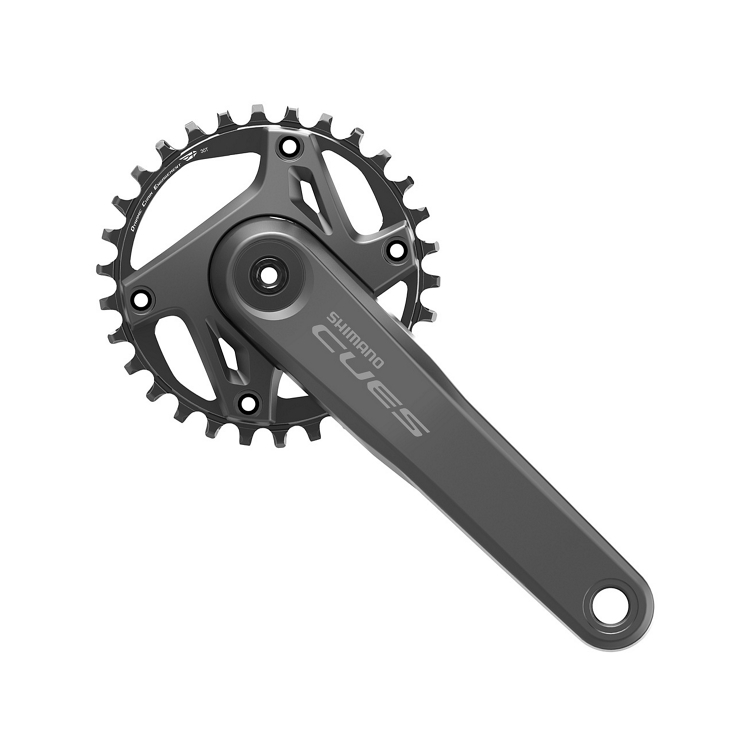

MODEL NO FC-U6000-1
SERIES CUES U6000 Series 11-speed
Color Series color
Rear speeds 11/10/9
Compatible chain LINKGLIDE, HG 11-speed
Chain line (mm) 52 (30T, 32T), 50 (40T, 42T)
O.L.D.|Thru (mm) 148, 142 (30T, 32T), 142 (40T, 42T)
O.L.D.|QR/Nut (mm) 141, 135 (30T, 32T), 135 (40T, 42T)
P.C.D. (mm) 96 (30T, 32T), 110 (40T, 42T)
Spider/gear arms 4
Chainring combination 30T, 32T, 40T, 42T
Q-factor (mm) 180
Crank arm length (mm)|170
Crank arm length (mm)|175
Optional chain guard|With chain guard X (40T, 42T)
Optional chain guard|Without chain/bash guard
2-PIECE CRANKSET
Compatible bottom bracket type|Outboard
Recommended bottom bracket|Threaded (normal) BB-MT501
Recommended bottom bracket|Threaded (chain case) BB-MT501
Recommended bottom bracket|Press-Fit BB-MT500-PA
Threaded bottom bracket shell width (mm)|68
Threaded bottom bracket shell width (mm)|73
Chain case compatible X (40T, 42T)
Stainless chain guard fixing screw
Crank fixing screw included
SKU 935620
Brand Shimano
Shipping Weight 1.2650kg
Shipping Width 0.270m
Shipping Height 0.080m
Shipping Length 0.180m
Shipping Cubic 0.003888000m3
