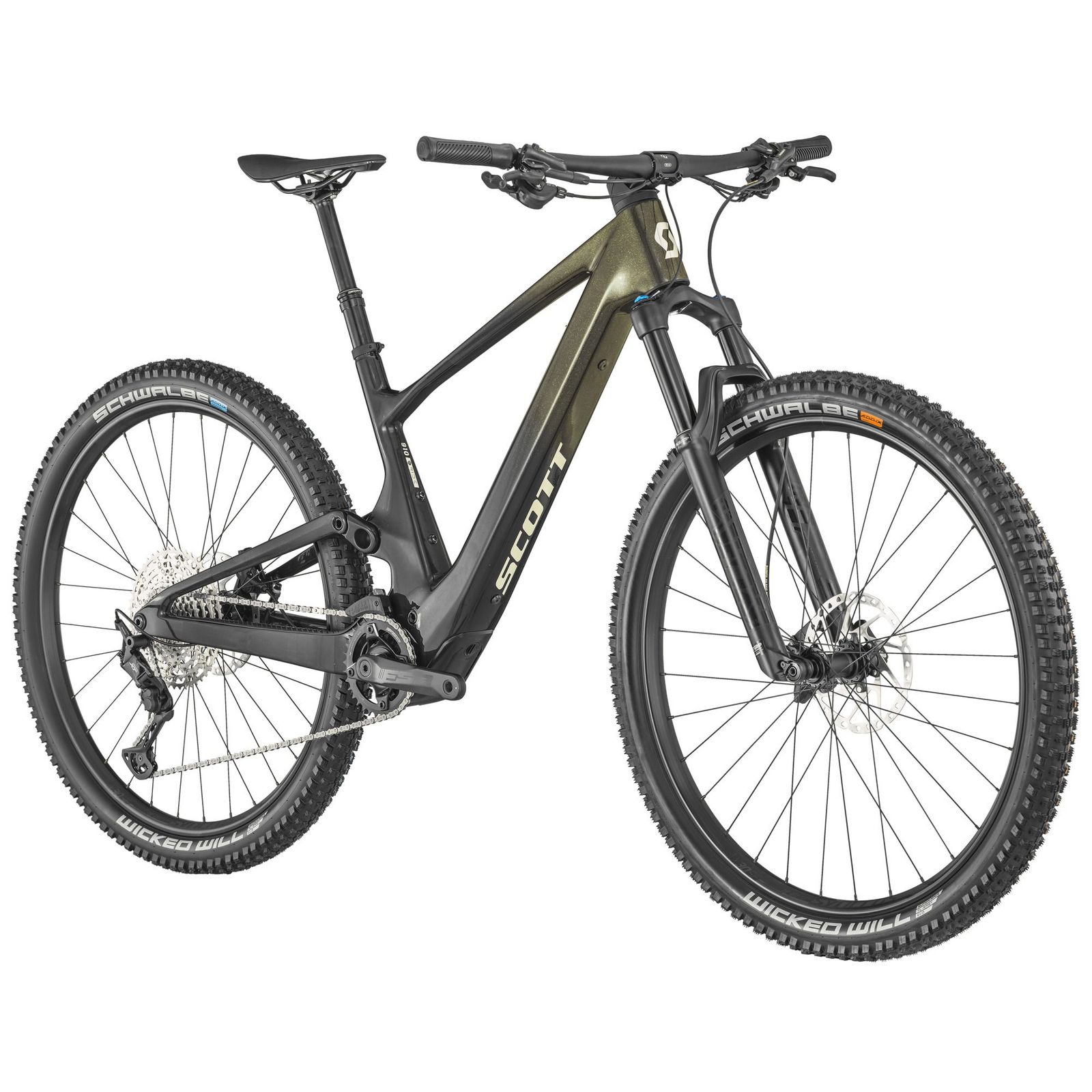

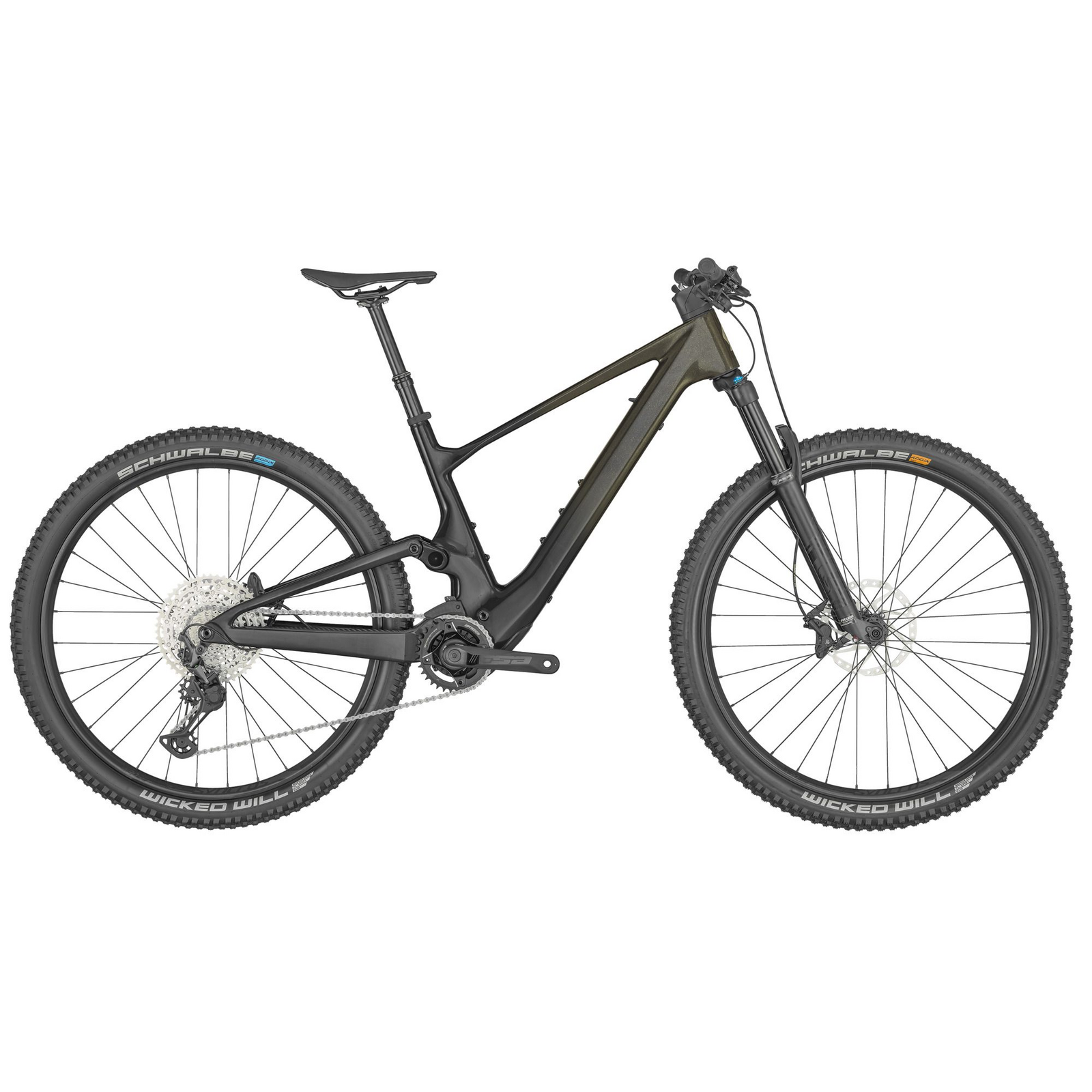

An E-MTB with the weight of an MTB, only 17.6kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.

Key Features:

  • Spark Carbon HMX Frame
  • FOX 34 Float Rhythm 130mm Fork
  • FOX Nude 5T EVOL, TwinLoc, 130mm
  • Shimano XT-Deore 12 Speed
  • Shimano Deore 4 Piston Disc Brakes
  • Syncros X-30SE TR Rims
  • Syncros Dropper Post and Parts

FRAME

Lumen eRIDE Carbon HMX

Integrated Suspension Technology

Flex Pivot / Adjustable head angle

Syncros Cable Integration System

TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline

TRAVEL

Front: 130mm / Rear: 130mm

FORK

FOX 34 Float Rhythm Air Grip

3-Modes / Kabolt 15x110mm axle / tapered steerer

44mm offset / Reb. Adj. / Lockout / 130mm travel

REAR SHOCK

FOX NUDE 5T EVOL Trunnion

SCOTT custom w. travel / geo adj.

3 modes: Lockout-Traction Control-Descend

Custom large Air volume / DPS / Reb. Adj.

Travel 130-90-Lockout / T165X45mm

REMOTE SYSTEM

SCOTT TwinLoc Suspension System

3 modes front and rear / integ. Grip clamp

DRIVE UNIT

TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

BATTERY

TQ Internal 360Wh

DISPLAY

TQ HPR

Bluetooth / ANT+ / Dedicated Smartphone app

CHARGER

TQ 100-240V-4A

REAR DERAILLEUR

Shimano XT RD-M8100 SGS

Shadow Plus / 12 Speed

SHIFTERS

Shimano Deore SL-M6100-IR / Rapidfire Plus

Ispec EV clamp

CRANKSET

FSA Alloy crankset / 175mm / 34T

CHAINGUIDE

e*thirteen / e*spec Slider

CHAINRING

Scott custom spider / FSA 12Speed 34T chainring

CHAIN

Shimano CN-M6100

CASSETTE

Shimano CS-M6100 / 10-51 T

BRAKES

Shimano Deore M6120 4 Piston Disc

ROTOR

Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm

HANDLEBAR

Syncros Fraser 2.0 DC Alloy 6061 D.B.

mini Rise / back sweep 8° / 760mm

Syncros Performance XC lock-on grips

H'STEM

Syncros DC 2.0

Syncros Cable Integration System

0° rise / 6061 Alloy / 31.8mm / 1 1/8"

SEATPOST

Syncros Duncan Dropper Post 2.0

31.6mm / S & M size 125mm / L size 150mm / XL size 170mm

SEAT

Syncros Tofino 1.5 Regular, Titanium rails

HEADSET

Syncros - Acros Angle adjust & Cable Routing HS System

+-0.6° head angle adjustment

ZS56/28.6 – ZS56/40 MTB

HUB (FRONT)

Formula CL-811 / 15x110mm

HUB (REAR)

Formula CL-148M / 12x148mm / Micro Spline

Syncros Axle w/Removable Lever

with 6mm Allen, T30 and T25 Tools

SPOKES

Stainless Black 15G / 1.8mm

RIMS

Syncros X-30SE / 32H / 30mm

Tubeless ready

FRONT TIRE

Schwalbe Wicked Will 29x2.4" EVO

Super Race / TLE / 67EPI / Addix Speed Soft

REAR TIRE

Schwalbe Wicked Will 29x2.4" EVO

Super Race / TLE / 67EPI / Addix Speed Grip

APPROX WEIGHTS IN KG

17.6 (Tubeless setup)

APPROX WEIGHTS IN LBS

38.8 (Tubeless setup)

SKU 290602
Brand Scott
Shipping Weight 16.0000kg
Shipping Width 0.290m
Shipping Height 0.900m
Shipping Length 1.200m
Shipping Cubic 0.313200000m3
