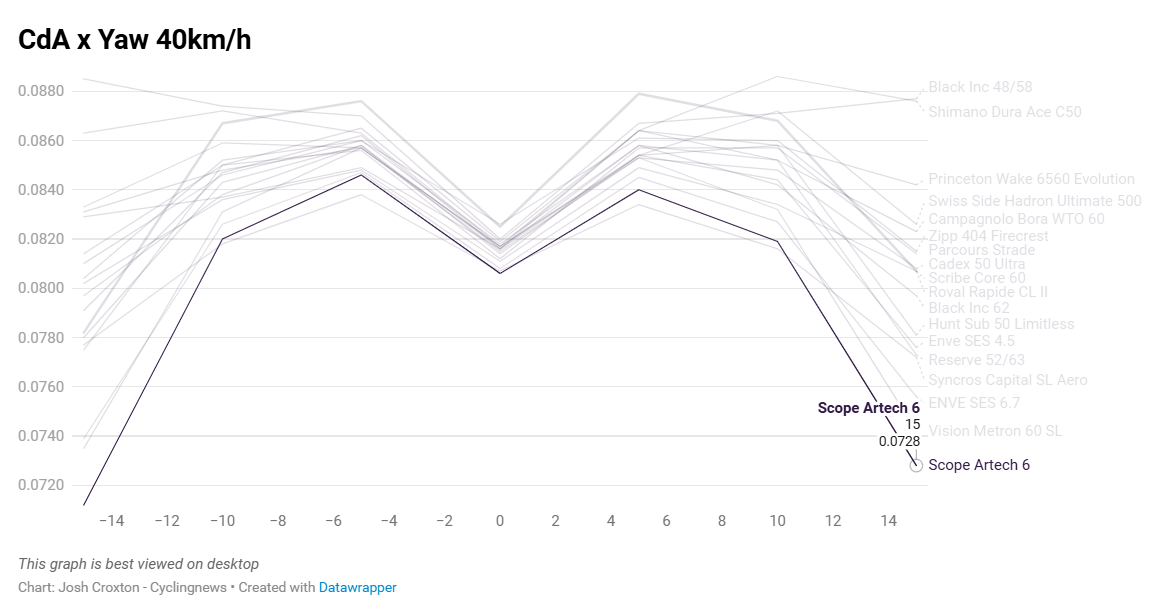

"All in all, the Scope wheels are packed with innovative tech, they look fast and feel incredible. By our data, they are the both the fastest and lightest on test, saving as much as 20.6 watts and 435g over our benchmark."*

*Cycling News. (2024). Wind tunnel tested road bike wheels 2024. Retrieved from https://www.cyclingnews.com/features/wind-tunnel-tested-road-bike-wheels-2024/

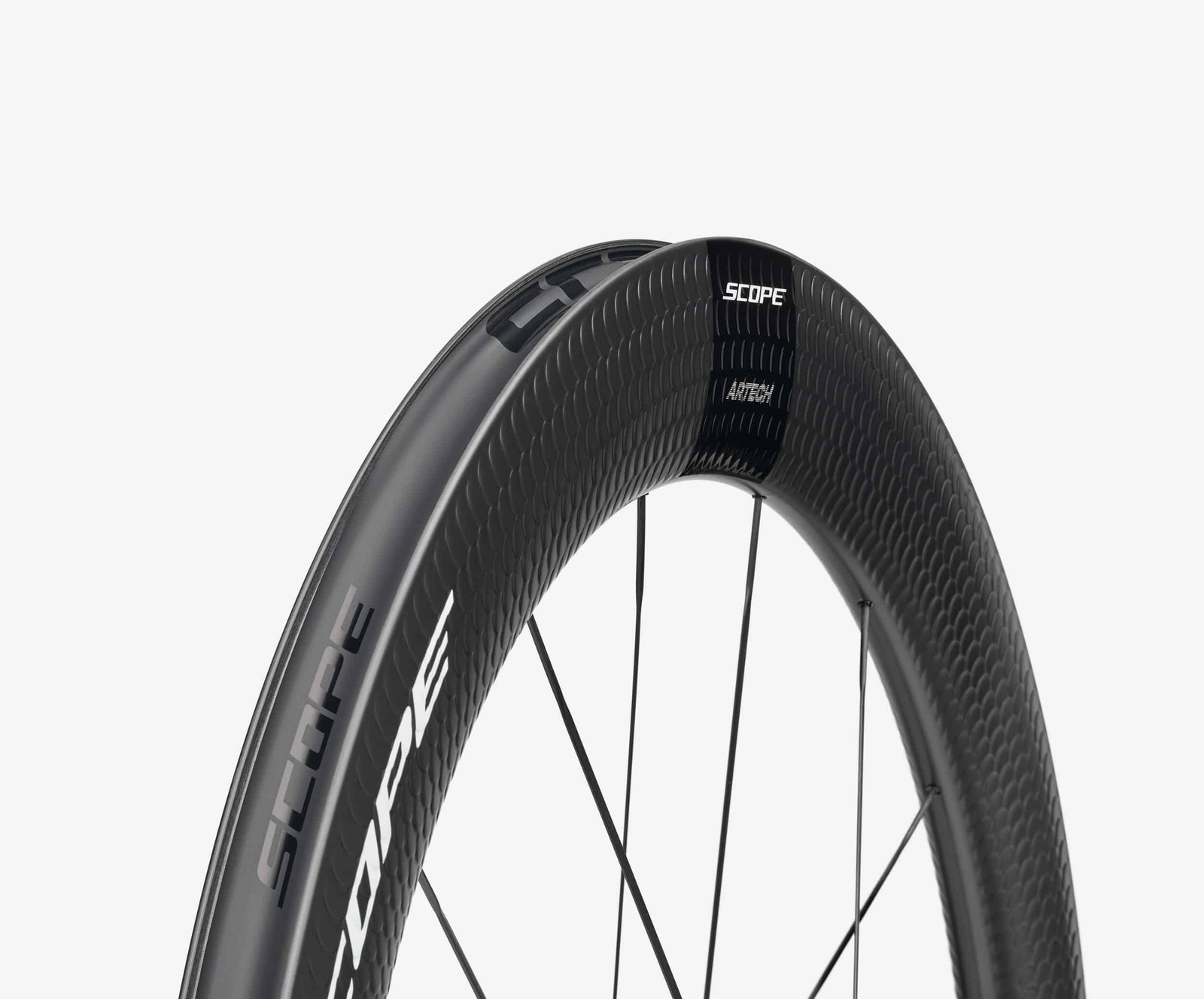

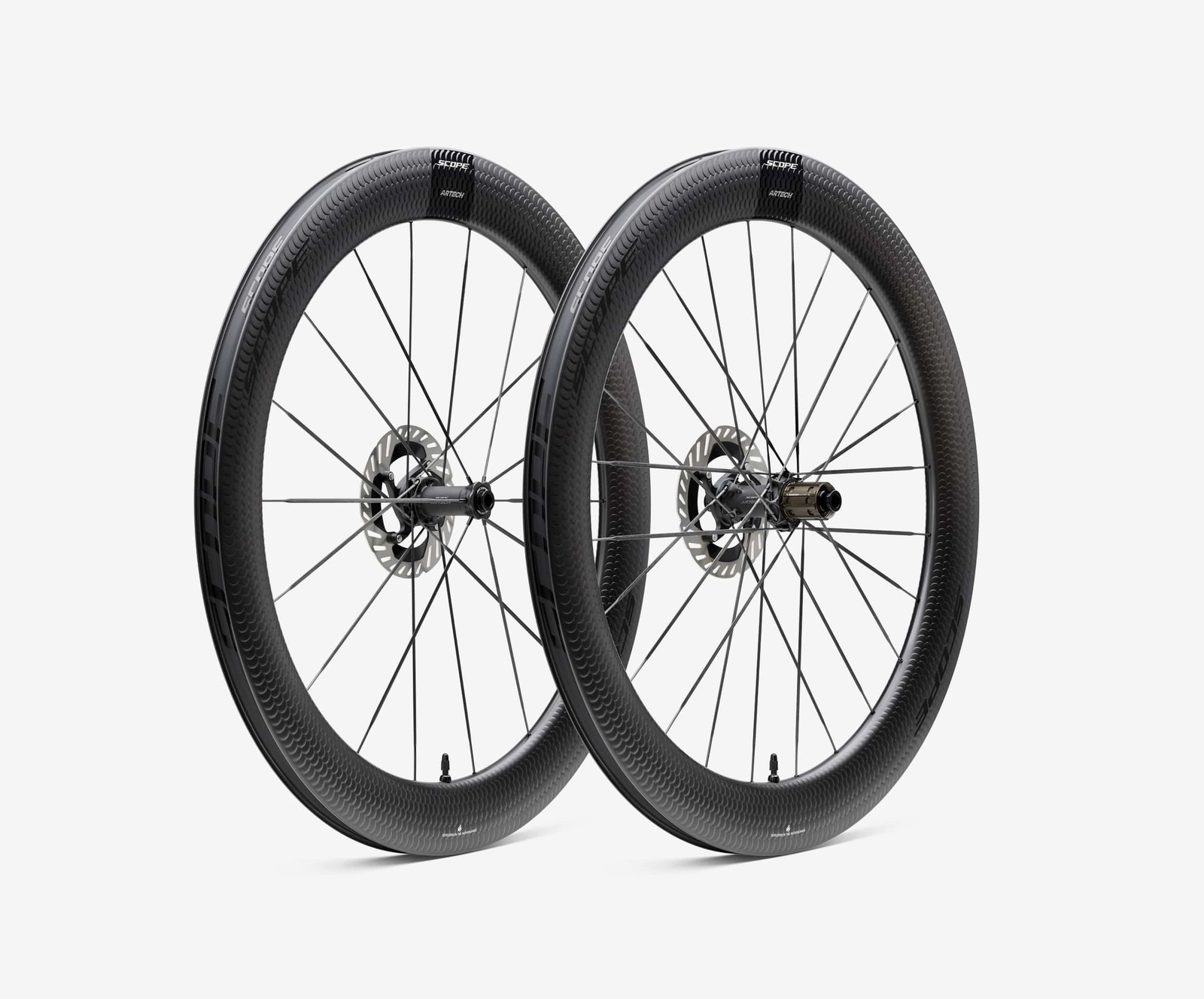

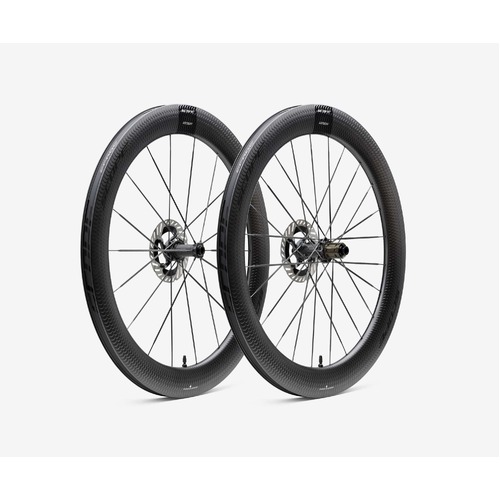

Developed for Aerodynamics and Lightweight

With a rim profile of 65 mm and a set weight of only 1244 grams, the Artech 6 combines best in class aerodynamics at a weight level you normally only see for shallow climbing wheels. Artech 6 makes it possible to ride a climbing stage at the Tour de France on an aero wheelset without a weight penalty.

Besides best in class aerodynamics and an extreme low weight, the Artech 6 provides high lateral stiffness and doesnt compromise in durability. The 23 mm internal width hooked tire bed, is aerodynamically optimized for 28mm clincher- and tubeless tires, for a perfect balance between rolling resistance and comfort.

Algorithm Enhanced Aerodynamics

The shape of our rims is defined by our Algorithm Enhanced Aerodynamics (AEA) technology. This algorithm optimizes the most aerodynamic rim-profile guaranteeing optimal aerodynamic performance.

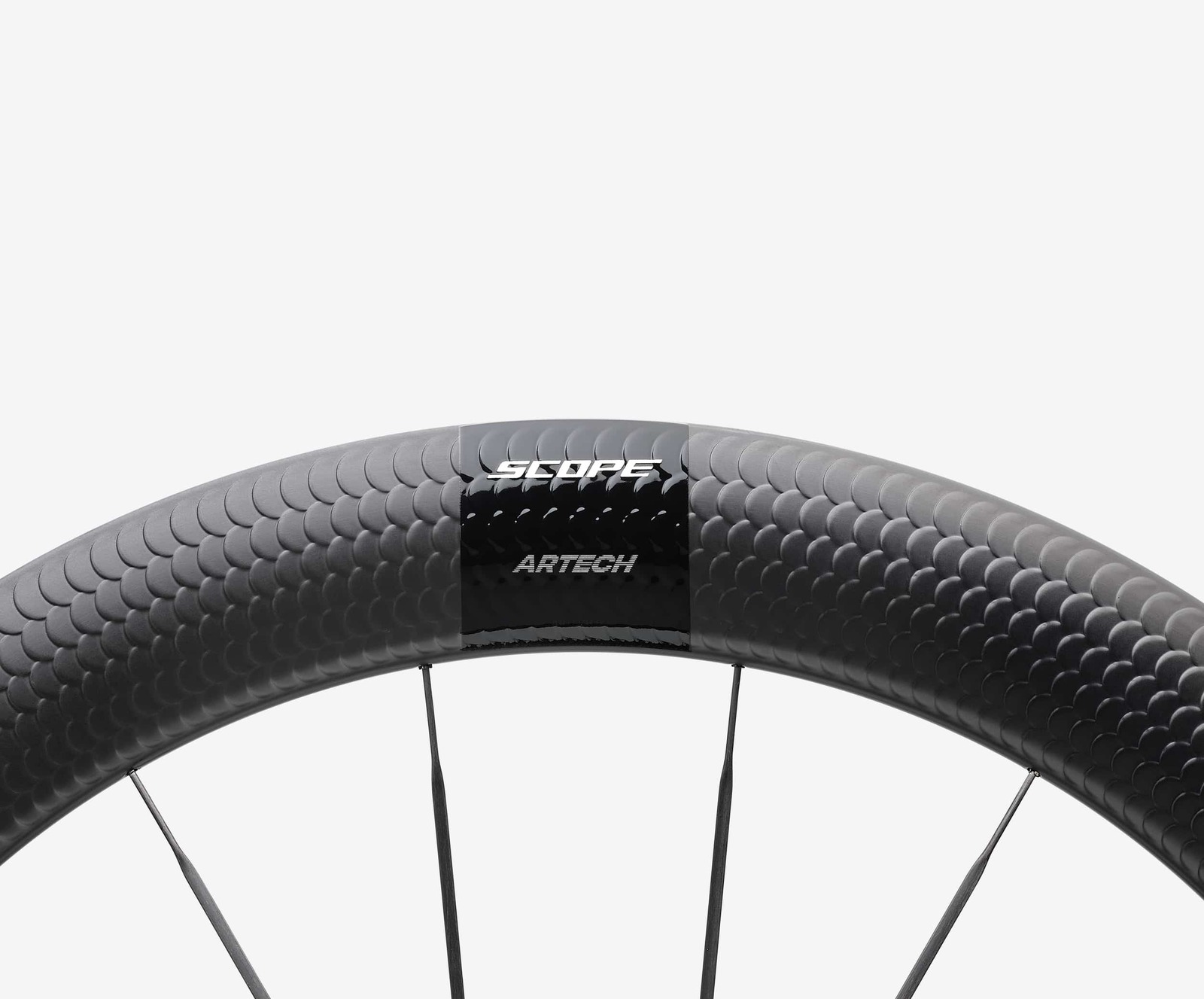

Surface Structure Aerodynamics

The Aeroscales generate velocity streaks travelling at different speed over our rim surface. This has a stabilizing effect on the airflow and reduces drag.

Lightweight design

With our Local Reinforcement carbon technology, weve increased the number of carbon layers around the spoke holes on the inside of the rim. This way we significantly reduce weight while preserving strength and stiffness.

Perfect tire-fit

The unique geometry of our Scope Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all clincher and tubeless tires.

Lightweight 3D printed

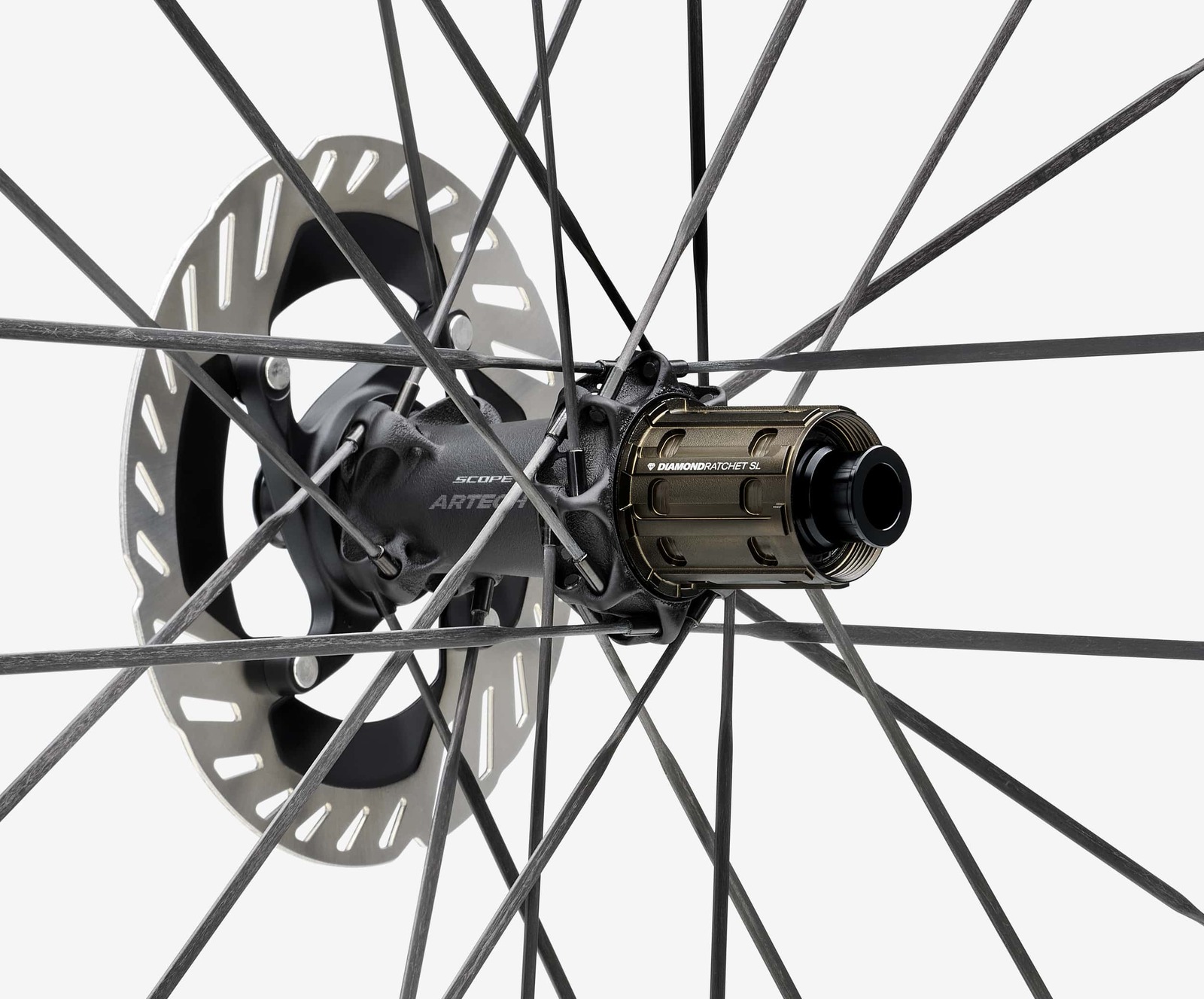

The lightweight bone like hub structure design is a result of topology optimization. Using Scalmalloy material in combination with the latest 3D-printing technology weve been able to manufacture this unique, lightweight and strong hub design.

Lightweight and durable

The Diamond Ratchet SL system is made from titanium and finished with a diamond like carbon coating. This results in direct engagement, improved durability, and a significant reduction in weight.

Ultra-light and Aerodynamic

The lightweight Carbonlite Aerospokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.

Specifications

General

Total set weight: 1244 gram

Maximum rider weight: No weight limit

Max tire pressure: 8.6 bar / 125 psi



RIMS FRONT REAR
Rim Height (mm) 65 65
External Rim Width (mm) 31 31
Internal Rim Width (mm) 23 23
Tubless (ready)* Yes Yes
Hooked Yes Yes
Optimum Tyre Width (mm) 28 28
Tyre Width Compatability (mm) 25-71 25-71

*Compatible with tubeless and clincher tires



HUBS FRONT REAR
Hubs Artech 3d Printed Artech 3d Printed
Bearings 2 x 61803 - SKF 3x 61803, 1x 61903 - SKF
Engagement System - 36T Diamond Ratchet SL
Axle System 12 x 100 12 x 142
Brake Interface Centerlock Centerlock
SPOKES FRONT REAR
Spoke Count 18 24
Spoke Type Carbonlite Aerospoke Carbonlite Aerospoke



Included with the wheels:

  • Pair of tubeless valves (pre-installed)
  • Tubeless rim tape (pre-installed)

  • Carbonlite Aerospokes spoke & nipple key

  • Artech accessory bag with cleaning materials

  • Two Artech padded wheel bags

  • Developed in The Netherlands

  • 3D printed in Germany

SKU 1027193
Brand Scope Cycling
Shipping Weight 8.0000kg
Shipping Width 0.700m
Shipping Height 0.680m
Shipping Length 0.320m
Shipping Cubic 0.152320000m3
