Look Keo 2 Max Carbon Pedals

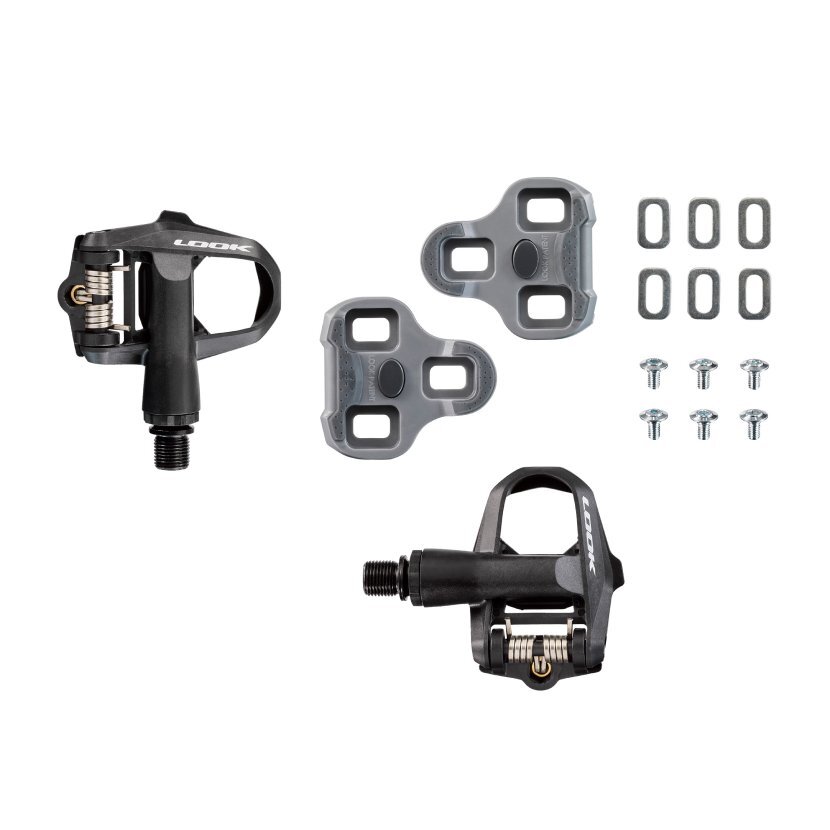

Includes Pair of Grey Kéo Grip Cleats & Screws
or 4 payments of $62.50 with
Info
Ready for new adventures? Follow your dreams with the KEO 2 MAX CARBON pedal. With its 500 mm² contact area, it offer perfect power transfer from your legs to your bike. The carbon body ensures lightness and efficiency while the Chromoly+ axle offers robustness in all conditions. Install your pedal, adjust the tension, and you are ready to ride.
Why you'll love it?
The "simple" pedal with the carbon body
- A pedal that weighs barely 125 grams
- A wide, stainless steel contact area for excellent stability thru the pedal stroke
- A carbon body combined with our renowned spring technology
The Look design team has completely remodeled the shape of the KEO 2 MAX carbon, giving it a new, slimmed down line yet a wider contact surface, increasing its style and efficiency.
Optimised Contact Service
The pedal’s surface area has substantial symbolic importance. It is part of the brand’s identity and acts as an indelible signature on the product.
The contact surface of the new KEO 2 MAX preserves the strong lines on which its history was built. Its width has been increased to 60 mm to provide a larger platform and improved foot stability during pedaling. This creates a feeling of unrivaled comfort not found in any other pedal.
We also sought to optimize power transfer thanks to its new 500 mm² of usable surface (+25% increase). The shape of the stainless-steel plate has been revised to match that of the cleat and to keep, regardless of the position of your foot (depending upon the angular float you use), the same amount of contact for consistent performance.
Increasing the pedal’s usable contact surface, without any additional weight gain, improves the Power to Weight ratio, making the product even better and allowing you to perform at your best.
Improved Spindle Profile
The spindle profile of the new KEO 2 MAX has also been optimized. Built around an oversized «Chromoly Plus» steel axle, it is composed of an axle with an inner ball bearing and a needle roller bearing, located under the contact surface, to handle the load and distribute it optimally.
A new component has been added between these two bearings. A serrated washer, previously used to hold the needle roller bearing in place, has been replaced with a conical spacer. This technical solution reduces friction, increases fluidity, and by consequence, decreases the geometrical tolerances of the pedal body and play.
The sole purpose of the sum of these improvements has been to guarantee you irreproachable reliability.
Specifications
Spindle
| Spindle material | Chromoly + |
|---|
Body & Platform
| Technology | Spring |
|---|---|
| Body material | Carbon |
| Platform material | Stainless steel |
| Platform area | 500 mm² |
| Platform width | 60 mm |
| Total stack height (pedal + cleat) | 17,3 mm (11 + 6.3 mm) |
| Q Factor | 53 mm |
Retention & Cleats
| Retention | 8 to 12 |
|---|---|
| Cleats | KEO grip |
| SKU | PPK2CAR |
| Barcode # | 3611720140173 |
| Brand | Look |
| Shipping Weight | 0.3670kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.050m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.001260000m3 |
