Bikepacking? Unsupported bike races? Breaking free from the limits of tarmac roads? Unpaved tracks, exciting journeys, trails and new horizons...

There are many ways of interpreting something that - far from being a new trend enjoyed by the few - has become a different way of enjoying cycling chosen by many. For some, it represents a new way of putting themselves to the test, while for others, it is an alternative choice that offers a world of new possibilities.

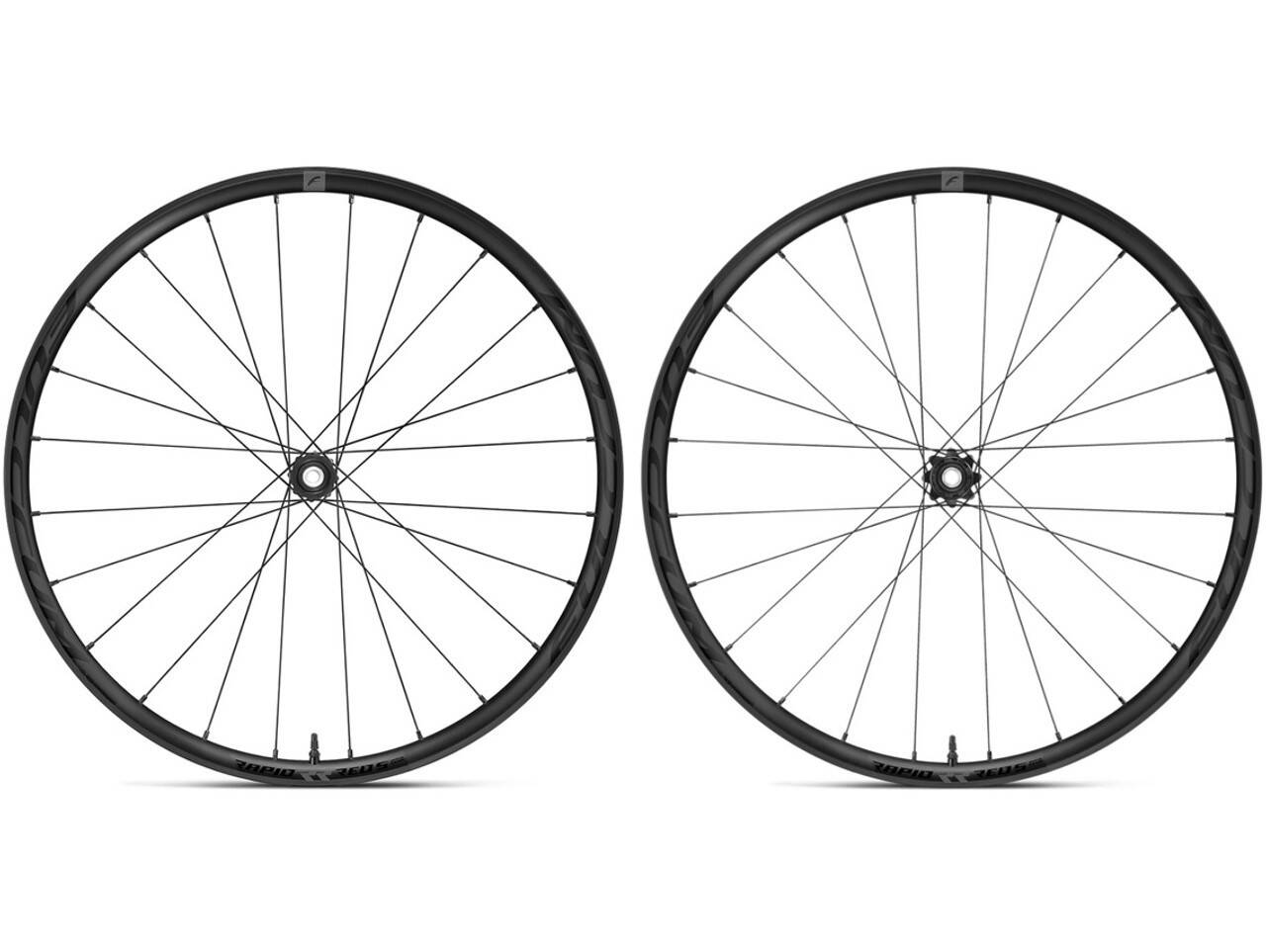

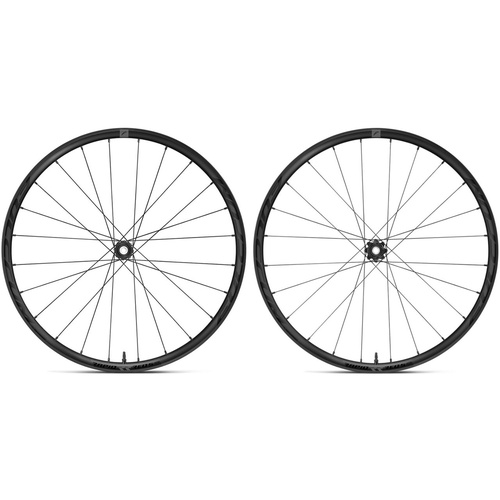

B-Road or "gravel" bikes are all this and more, and the Rapid Red 5 DB wheel has been designed and developed by Fulcrum for this kind of riding.

Whilst developing the Rapid Red 5 DB, Fulcrum's R&D department has brought together all the experience and technical expertise gained while creating racing bike wheels, drawing on this to design a model for use on surfaces other than tarmac.
Unpaved roads, paths and dirt tracks call for a wider inner channel - 23 mm in this instance - with a low, ultra-resistant 24 mm rim, to cushion blows and deliver superb ride comfort, regardless of the stresses to which it is exposed.

The profile of the wheel enables tubeless ready tyres of between 30 and 46 mm to be fitted, with an extensive range of set-ups that can be adjusted in accordance with the type of tracks to be ridden. The 24 straight-head spokes are supported by a solid aluminium hub, ideal for tackling rough terrain and for taking the slightly higher weights of a bike that is ready to go on a journey.

Get ready to start dreaming about your next trip: check your equipment, get your lights ready, and take all the time you need. Your Rapid Red 5 DB wheels will be your faithful companion, comfortable and reliable, light and precise.
This, fundamentally, means freedom.



tyre type 2-Way fit Ready (for clincher and tubeless ready)
tyre size 28"
discipline B-Road (Gravel)
ASTM category 2
weight 1760 g
rim material Aluminum
rim material details Aluminium
profile height Low
rim height 24 mm
rim width 28 mm
inner rim width (channel) 23 mm
tyre width From 30 mm to 46 mm
braking system Disc brake Centerlock
braking surface/brakes options AFS
front axle compatibility HH15-100/HH12-100
rear axle compatibility HH12-142
front wheel spokes 24
rear wheel spokes 24
spokes: material Stainless steel
spokes: profile Rounded, straight pull
nipples Aluminum

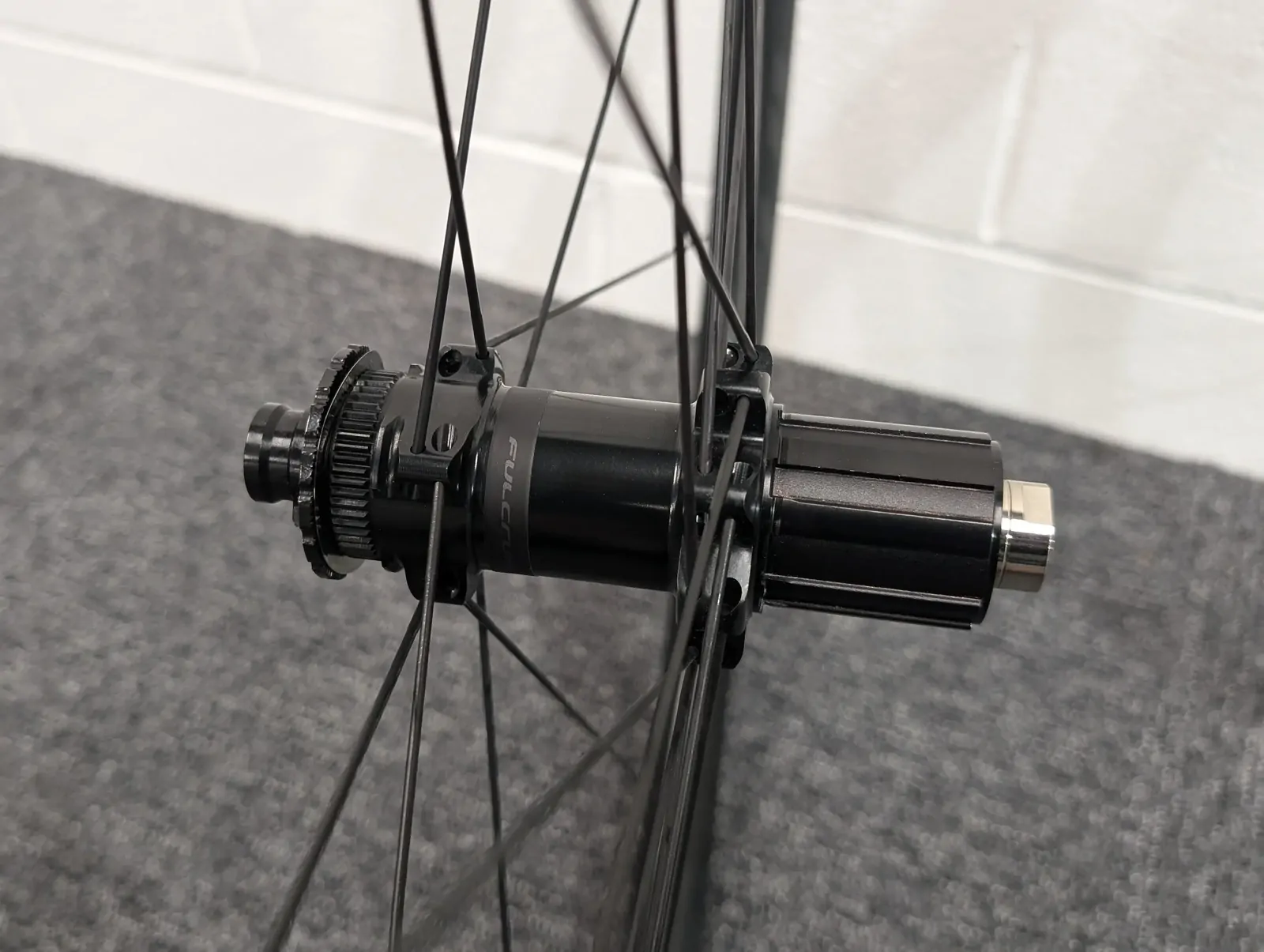

front hub Aluminum, Aluminum flanges
rear hub Aluminum, Aluminum flanges
bearings Sealed cartridge bearings
others Aluminum Axle
Weight limit
120 kg (comprising cyclist, bike, equipment and luggage)
FWB HG

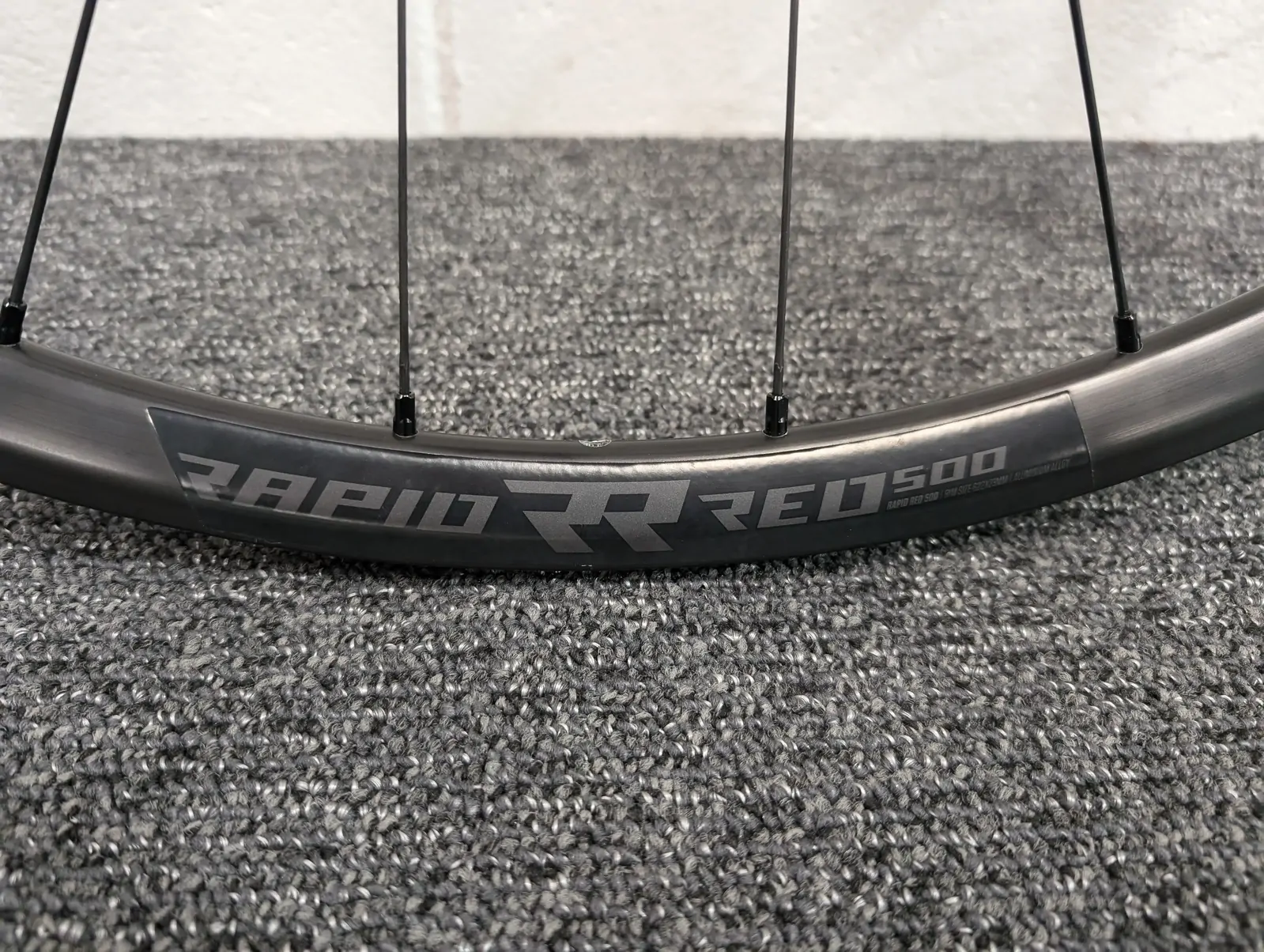

* The "Rapid Red 500" custom model has the same technical features as the "Rapid Red 5" model described here
SKU 1028544
Brand Fulcrum
Shipping Weight 4.0000kg
Shipping Width 0.650m
Shipping Height 0.800m
Shipping Length 0.200m
Shipping Cubic 0.104000000m3
