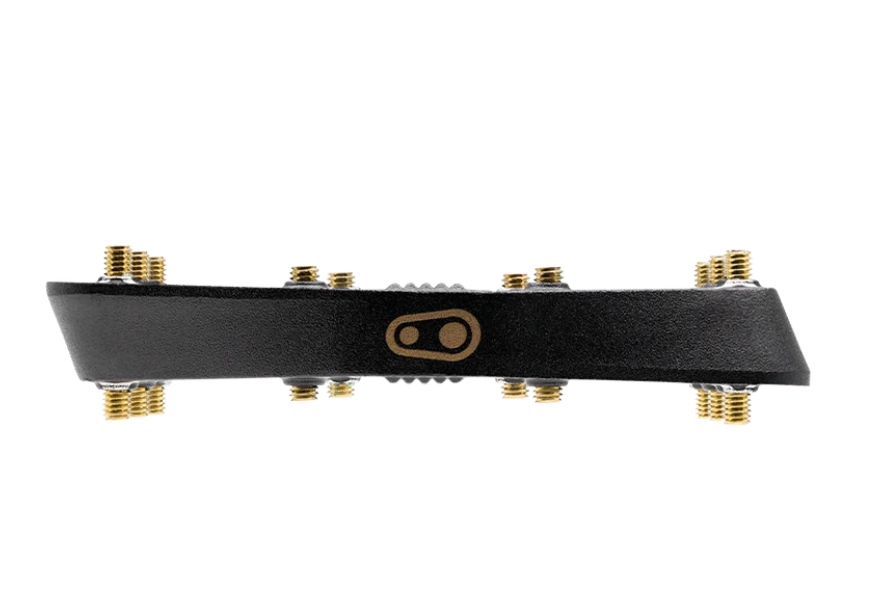

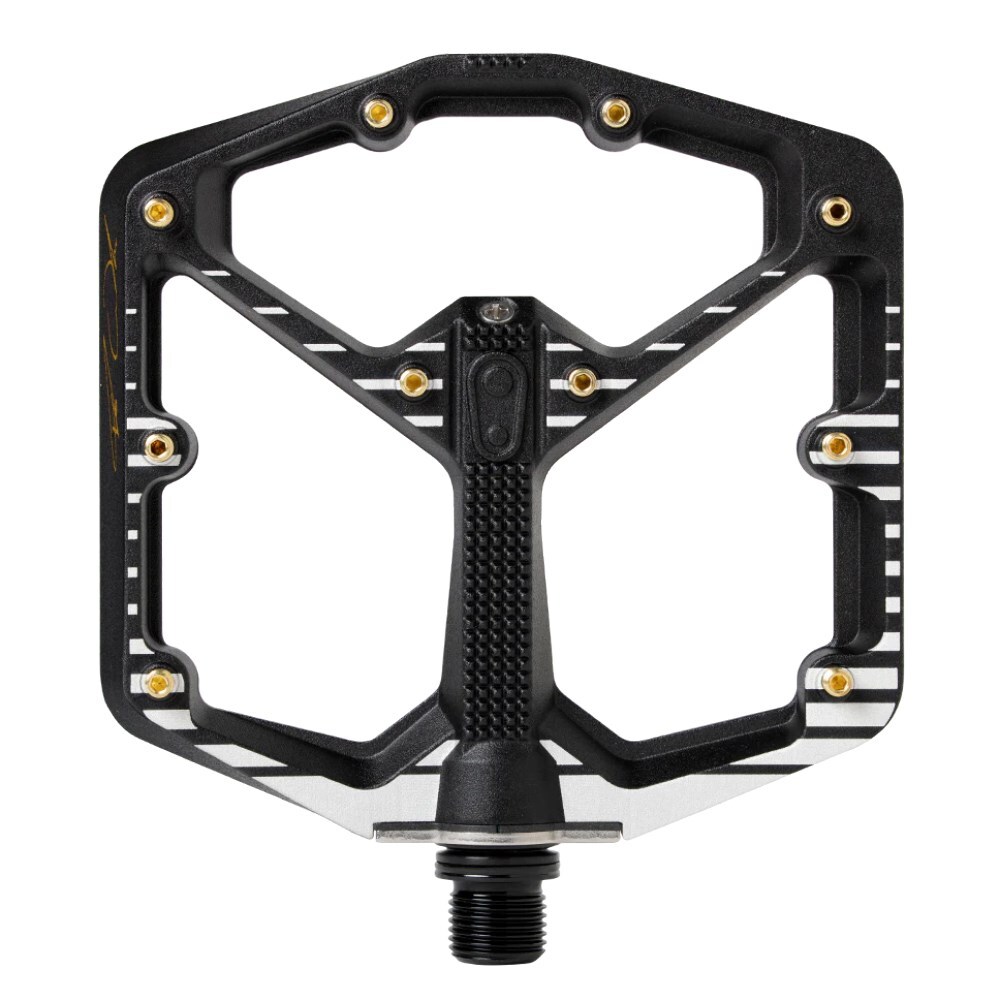

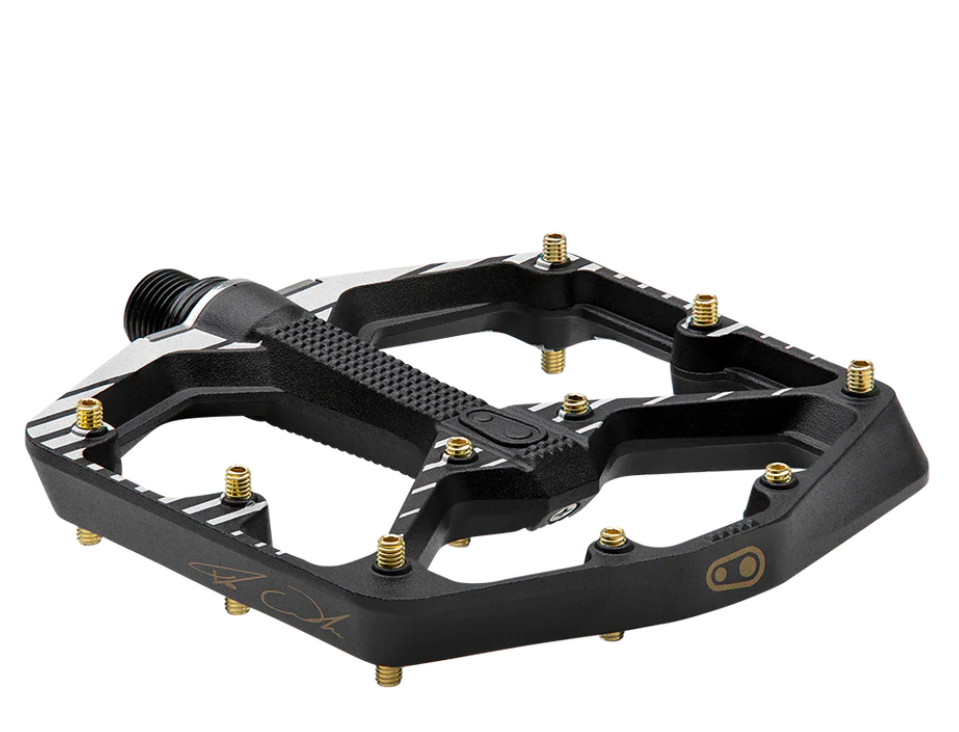

Crankbrothers pro-level platform pedal, designed with Fabio Wibmer.

  • Double-anodized, laser-etched finish
  • Optimal surface area
  • Minimal profile 11mm-13mm thin
  • Concave platform for secure foothold
  • 10 adjustable pins per side for grip
  • Premium bearings & seal system
  • Grease port for easy maintenance
  • Stamp Large recommended for shoe sizes: 10-15 (US) // 43-49 (EU)
  • Stamp Small recommended for shoe sizes: 5-10 (US) // 37-43 (EU)
  • Serviceable, pedal refresh kit found here

Specifications

  • BODY MATERIAL - Forged 6061-T6 Aluminum
  • FOOTPRINT - 114mm x 111mm
  • TRACTION PINS - 10 adjustable per side
  • PIN LENGTH - 8mm inner, 10mm outer
  • INNER BEARING TYPE - Igus LL-glide bearing
  • OUTER BEARING TYPE - Igus LL-glide bearing
  • SPINDLE MATERIAL - Forged SCM 435 Chromoly Steel
  • MAX RIDER WEIGHT - No restriction
  • WEIGHT - 375g per pair
  • WARRANTY - 5 years
SKU 16723
Barcode # 641300167231
Brand Crankbrothers
Shipping Weight 0.5150kg
Shipping Width 0.210m
Shipping Height 0.060m
Shipping Length 0.140m
Shipping Cubic 0.001764000m3
