Introducing the BMC Teammachine R 01 FIVE, a pinnacle of engineering and design, crafted for cyclists who demand unparalleled performance and precision. Developed in collaboration with Red Bull Advanced Technologies, this road racing bike redefines speed and agility on every terrain.

Key Features:

  • Advanced Aerodynamics: The Teammachine R 01 FIVE boasts a revolutionary Halo Fork with ultra-wide parallel legs, directing turbulent air away from the frame to reduce drag. Its deep head tube and integrated ICS Carbon Aero Cockpit ensure a streamlined profile, enhancing aerodynamic efficiency.

    bmc-switzerland.com

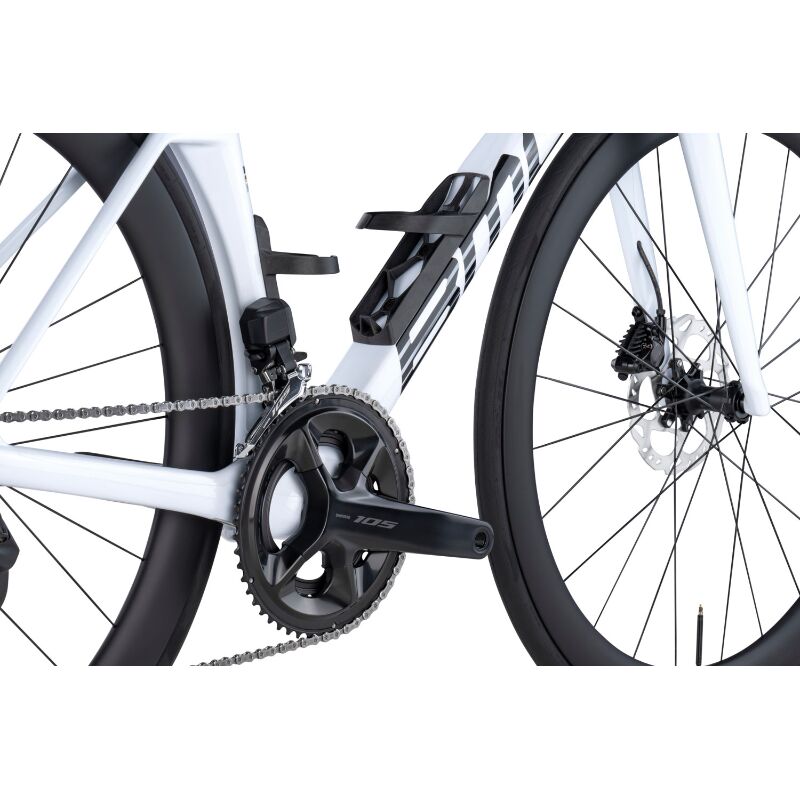

  • Precision Engineering: Equipped with the Shimano 105 Di2 12-speed electronic drivetrain, riders experience seamless and responsive shifting. The CR 50 Carbon wheelset, optimized for aerodynamics, offers exceptional speed and stability.

    lvr-cycles.com

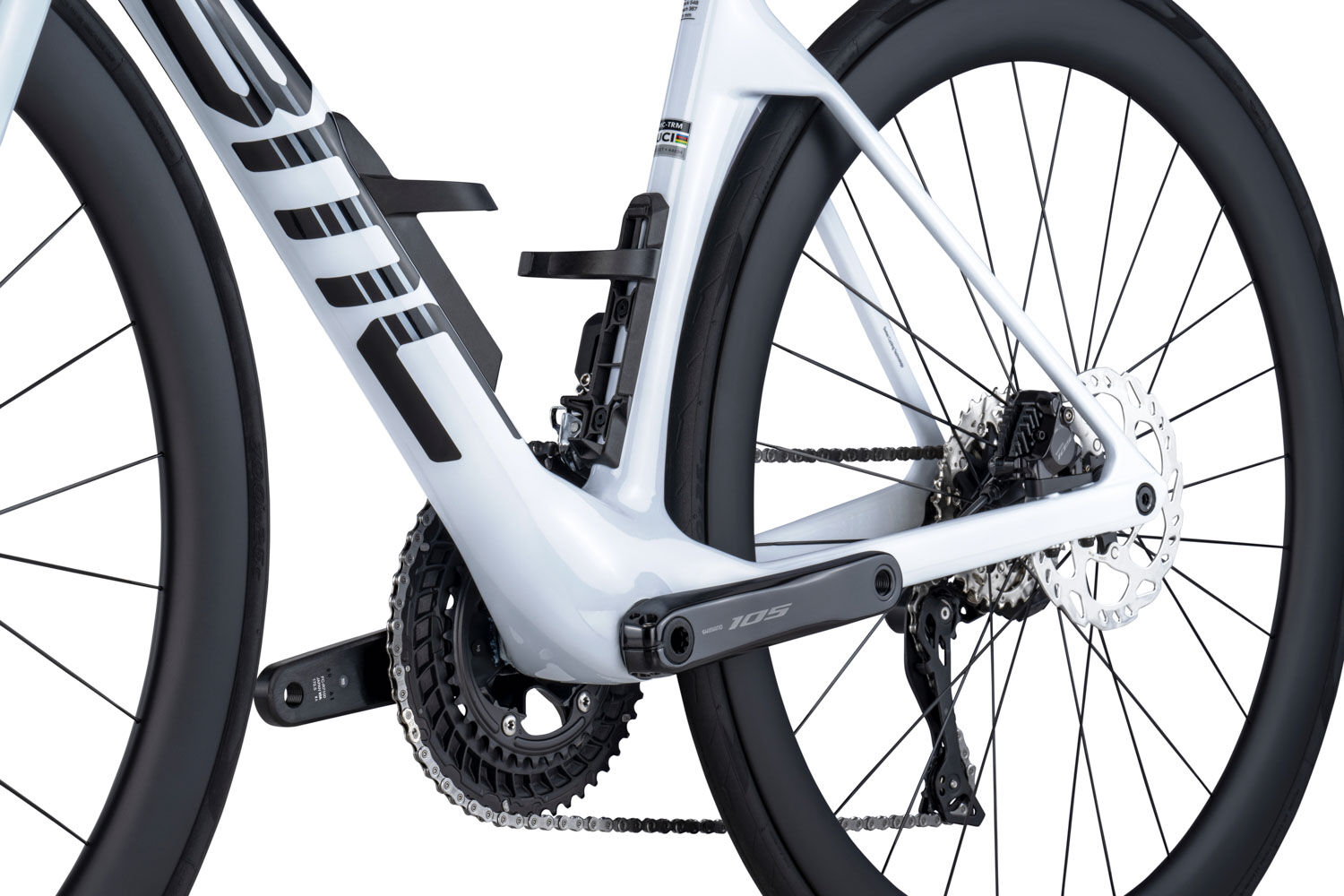

  • Innovative Design Elements: The "Mariana" bottom bracket design enhances airflow and provides maximum rigidity for efficient power transfer. The integrated Aerocore bottle cages not only reduce drag but also improve the bike's center of gravity, making it faster even with bottles onboard.

    bmc-switzerland.com

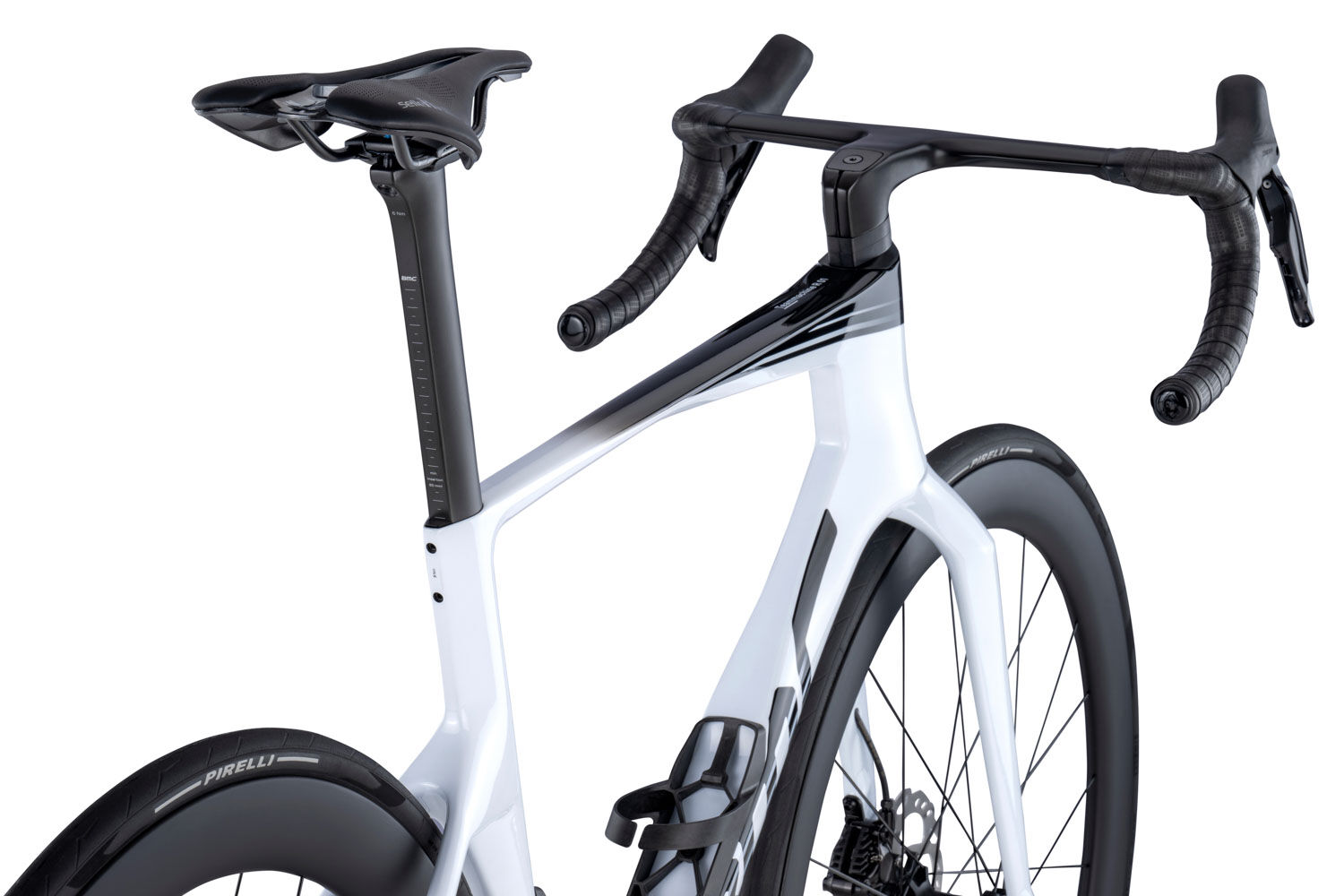

  • Comfort and Control: The ICS Carbon Aero one-piece cockpit offers an aerodynamic position with a narrow upper section and a wide base for improved control. The Teammachine R 01 Premium Carbon Seatpost, with a 10mm offset, ensures rider comfort during long rides.

    lvr-cycles.com

Technical Specifications:

  • Frame: Teammachine R 01 Premium Carbon with Aerocore design, internal cable routing, Stealth Dropout design, Flat Mount Disc brakes, 12 x 142 mm thru-axle.

  • Fork: Teammachine R 01 Premium Carbon, ICS technology for internal cabling, Stealth Dropout design, Flat Mount Disc brakes, 12 x 100 mm thru-axle.

  • Drivetrain: Shimano 105 Di2 12-speed electronic shifting system.

  • Wheelset: CR 50 Carbon, tubeless-ready, 50mm depth.

  • Tires: Pirelli P Zero Race TLR, 26mm width, tubeless compatible.

  • Saddle: Selle Italia SLR Boost Superflow with manganese rails, 145mm width.

  • Weight: Approximately 7.8 kg (size 54, without pedals).

The BMC Teammachine R 01 FIVE is more than just a bicycle; it's a testament to cutting-edge technology and design, offering cyclists an unmatched riding experience. Whether you're competing in a race or conquering challenging terrains, this bike is engineered to deliver excellence at every turn.

Specifications

Frameset

Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle



Cockpit

Handlebar:
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare



Seat

Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Saddle:
Selle Italia SLR Boost Superflow | Manganese Rail | 145mm



Drivetrain

Crankset:
SHIMANO 105 (FC-R7100)

Chainrings:
52-36T

Cassette:
SHIMANO 105 (CS-R7101)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M6100

Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)

Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)

Shifters:
SHIMANO 105 Di2 (ST-R7170)

Gears:
2 x 12

Bottom Bracket:
SHIMANO Press Fit SM-BB72



Brakes

Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)

Rotors:
SHIMANO SM-RT70 | Centerlock [or] SHIMANO 105 (RT-CL700)

Rotor Size (F/R):
160 / 160mm



Wheels

Rims:
CR 50 Carbon | Tubeless Ready | 50mm

Hubs (F/R):
TXC-812 & TXC-240 Centerlock

Tires:
Pirelli P Zero Race TLR | 26mm

Tubeless Information:
Tubeless Rim | Tubeless Tires



Accessories

In the Box:
Aerocore Bottle Cages

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
7.8kg | Size 54 with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

SKU 1072333
Brand BMC
Shipping Weight 8.0000kg
Shipping Width 1.200m
Shipping Height 0.450m
Shipping Length 0.800m
Shipping Cubic 0.432000000m3
