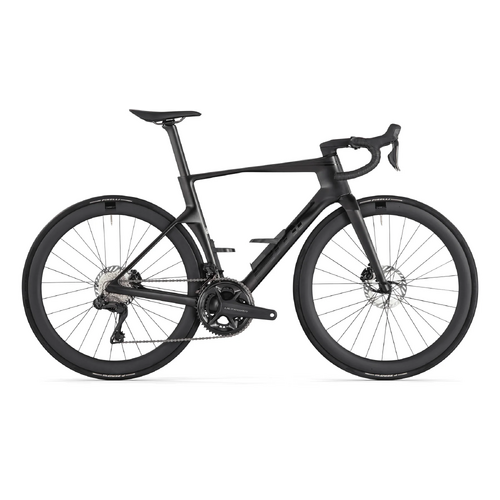

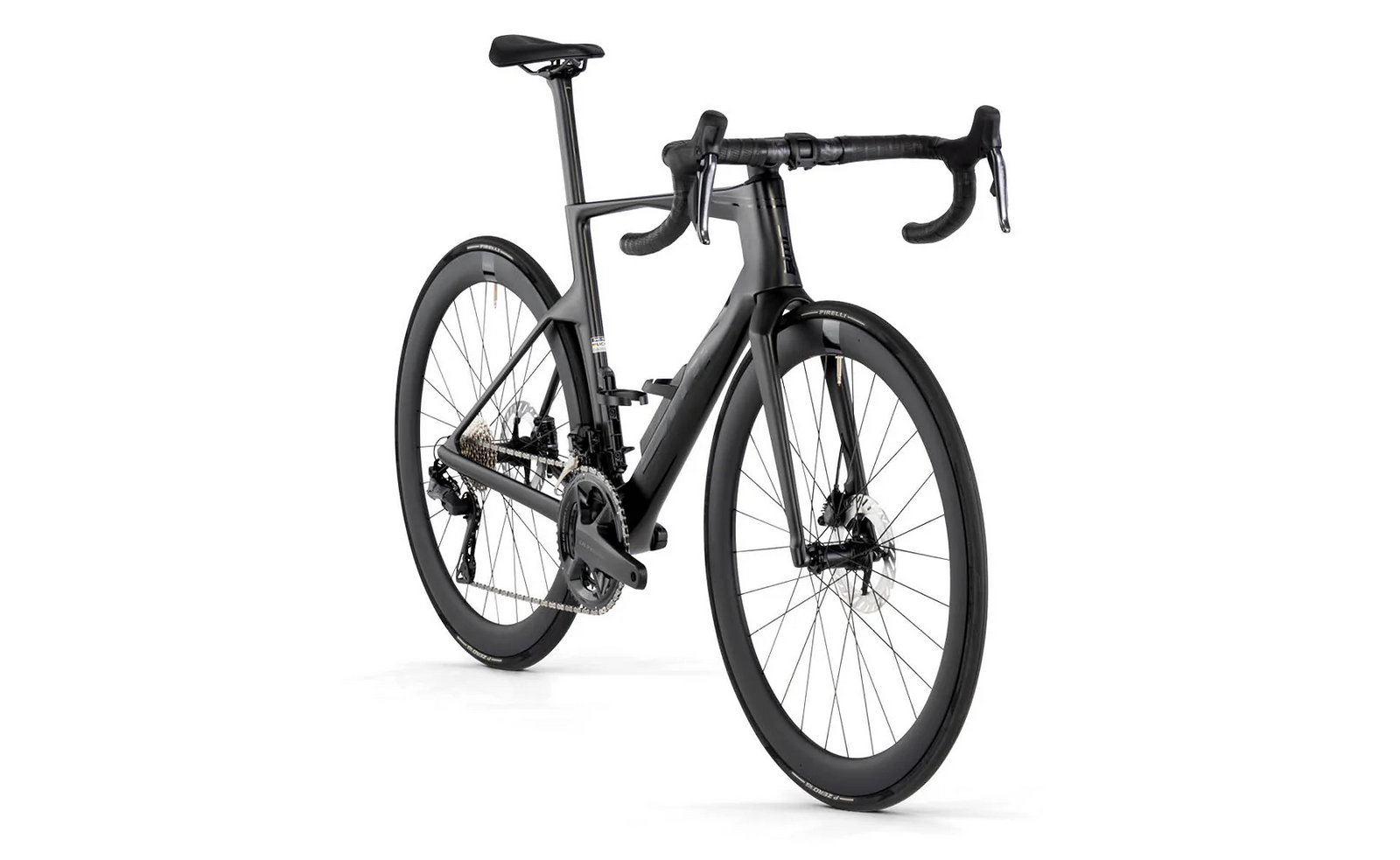

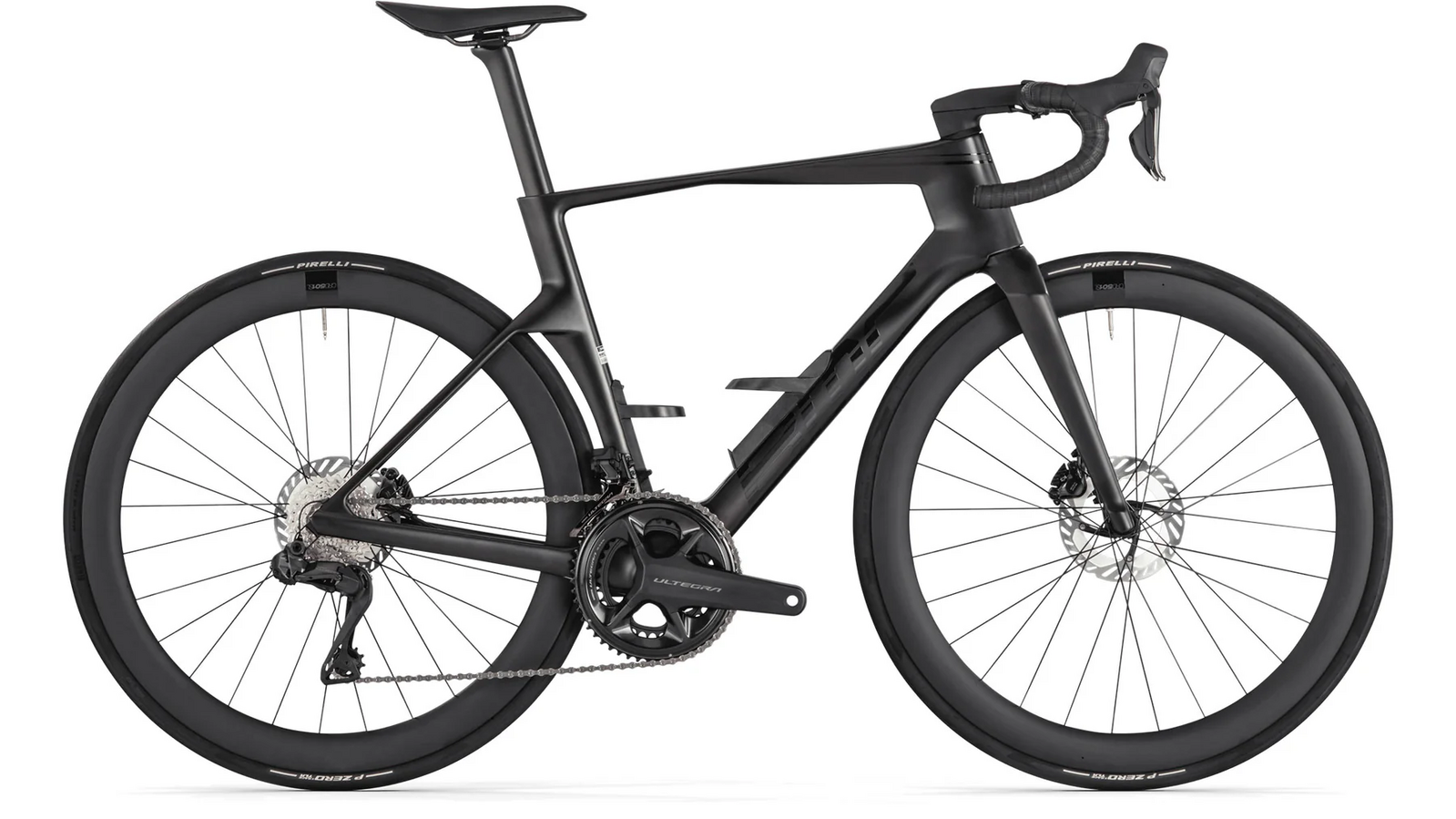

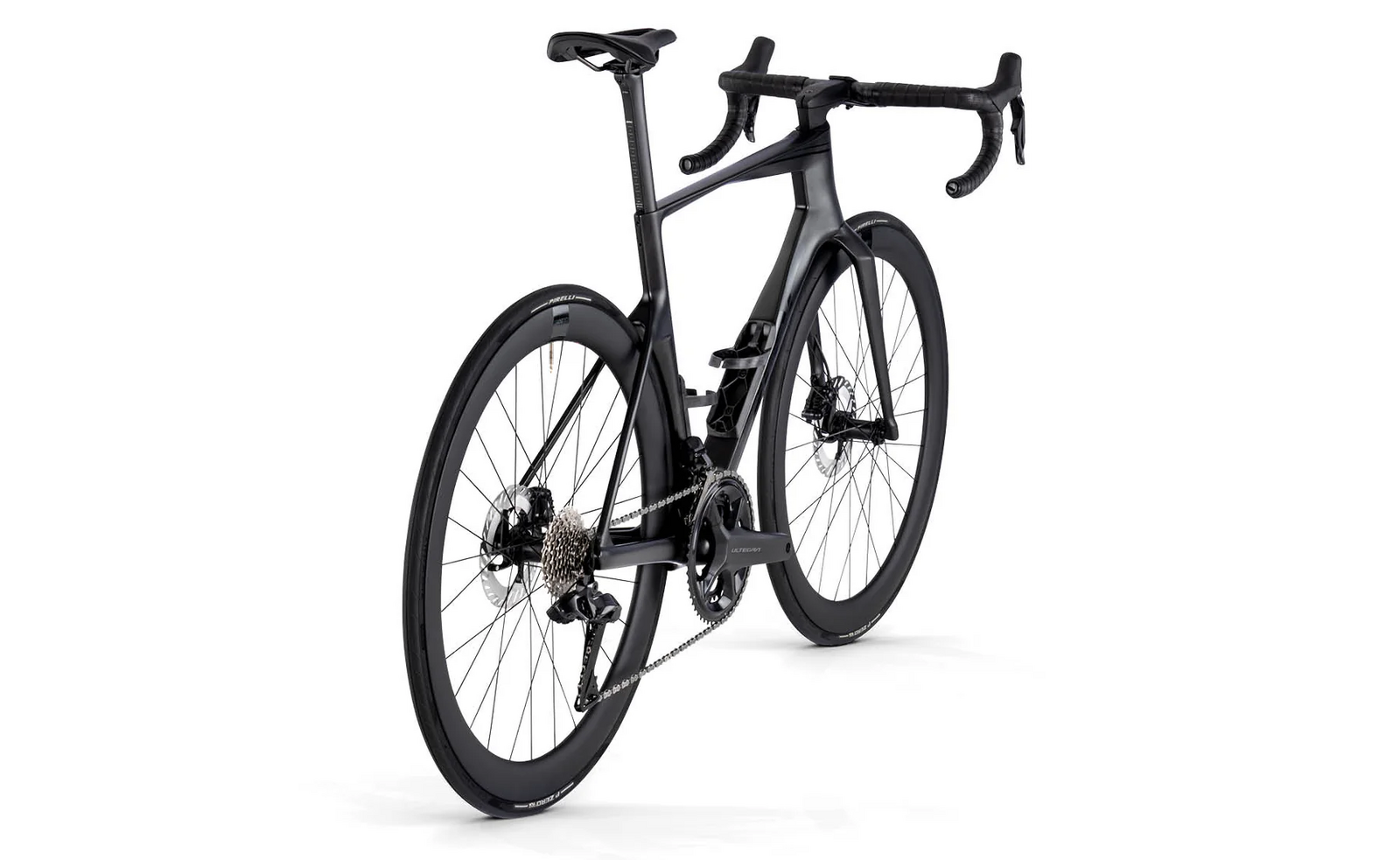

Born in the Swiss Alps, toughened over Spring Classics cobblestones, and perfected in the Grand Tours. The Teammachine R, developed with Red Bull Advanced Technologies, is more than just a race bike. The Teammachine R 01 FOUR features Shimano Ultegra Di2 with a powermeter, CRD-501 Carbon Wheelset, and BMC’s ICS2 Integrated Cockpit Design, combining precision, aerodynamics, and performance for the ultimate riding experience.
Key Features
- Shimano Ultegra Di2 Drivetrain with Powermeter
- CRD-501 Carbon Wheelset

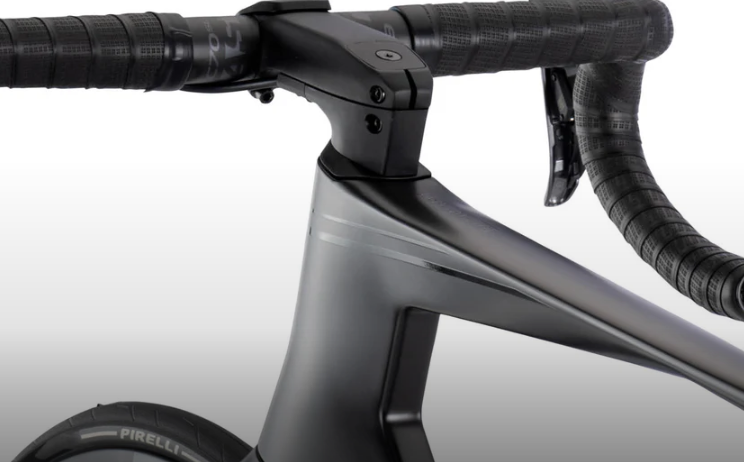

- ICS2 Integrated Cockpit Design
Industry Reviews of New BMC Teammachine R 01
The new Teammachine R 01 has received numerous glowing reviews from key industry players. Take a look at the sample review below:
"When the BMC Teammachine R 0-1 LTD hit my door, I didn’t expect to feel substantial speed gains compared to other modern premium-level bicycles. But soon, I would be proven wrong. Very wrong."
- Gear Junkie: "The Fastest Road Bike I’ve Ever Ridden: BMC Teammachine R 01 LTD Review"
"...I’m calling the Teammachine R my favorite (current) race bike. It is undeniably fast and extremely responsive. It handles beautifully and I find it’s comfortable enough for long hours on the pavement, but with pleasing and appropriate levels of feedback."
- Bicycling: "BMC’s Teammachine R 01 Is a Radical Looking Race Bike—But Does It Have Wings?"
"If your goal is to get from A to B as quickly as possible, I struggle to think of another all-round race bike as purposeful and focused as the Teammachine R."
- BikeRadar: "BMC Teammachine R 01 LTD review"
"The BMC Teamamchine R is extreme. Extremely fast, extremely fun, and extremely expensive."
- Rouleur: "BMC Teammachine R review: All-round fast"
Specifications
FRAME
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology, Stealth Cable Routing | Integrated Aerocore Bottle Cages | Stealth Dropout Design | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle
FORK
Teammachine R 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle
CRANKSET
SHIMANO Ultegra FC-R8100 12spd 52-36T 4iii Precision 3+ Power Meter (Left Side)
CASSETTE
SHIMANO Ultegra CS-R8100 12spd 11-30T
CHAIN
SHIMANO Ultegra CN-M8100 12spd
FRONT DERAILLEUR
SHIMANO Ultegra Di2 FD-R8150 12spd
REAR DERAILLEUR
SHIMANO Ultegra Di2 RD-R8150 12spd
SHIFTERS
SHIMANO Ultegra Di2 ST-R8170 12spd
BRAKES & ROTORS
SHIMANO Ultegra BR-R8170 / SHIMANO RT-CL800 160 / 160 mm
HANDLEBAR
Easton EC70 SL Carbon or Easton EC90 SLX Carbon
STEM
BMC ICS2 - Integrated Cockpit System Technology
SEATPOST
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
SADDLE
Fizik Argo Vento R3 (140mm)
HUBS
CRD-501
RIMS
CRD-501 Carbon - Tubeless Ready - 50mm
TIRES
Pirelli P ZERO Race TLR 26mm
TIRE CLEARANCE
30mm (Measured Width)
Geometry
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
Reach | 368 | 378 | 387 | 393 | 402 | 409 |
Stack | 504 | 528 | 548 | 563 | 582 | 608 |
Bar Reach | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 |
Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Fork Length | 367 | 367 | 367 | 367 | 367 | 367 |
Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
Head Tube | 108 | 133 | 149 | 165 | 185 | 211 |
Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
Seat Angle | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
Seat Tube | 418 | 463 | 499 | 519 | 541 | 570 |
Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
Seatpost Offset | 10 | 10 | 10 | 10 | 10 | 10 |
Stem Angle | -6 | -6 | -6 | -6 | -6 | -6 |
Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
Top Tube | 522 | 532 | 552 | 562 | 582 | 598 |
Trail | 63 | 63 | 63 | 63 | 63 | 63 |
Wheelbase | 968 | 986 | 989 | 999 | 1015 | 1030 |
For an in-depth overview of all the new features of the BMC Teammachine R01 FOUR, head over to BMC's product page.
Frameset
Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Stem:
BMC ICS2 | Integrated Cockpit System Technology
Handlebar:
Easton EC70 SL Carbon or Easton EC90 SLX Carbon
Seat
Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
Saddle:
Fizik Argo Vento R3 | 140mm
Drivetrain
Crankset:
SHIMANO Ultegra (FC-R8100)
Chainrings:
52-36T
Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Cassette:
SHIMANO Ultegra (CS-R8100)
Cassette Size:
11-30T
Chain:
SHIMANO CN-M8100
Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)
Shifters:
SHIMANO Ultegra Di2 (ST-R8170)
Gears:
2 x 12
Bottom Bracket:
PF86 Bottom Bracket
Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)
Rotors:
SHIMANO RT-CL800 | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CRD-501 Carbon | Tubeless Ready | 50mm
Hubs (F/R):
CRD-501
Tires:
Pirelli P Zero Race TLR | 26mm
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Accessories
Aerocore Bottle Cages
Additional Information
Tire Clearance:
30mm
Weight without Pedals:
7.5 Kg
ASTM Classification:
Level 1
System Weight Limit:
110kg
SKU | 984952 |
Brand | BMC |
Shipping Weight | 12.0000kg |
Shipping Width | 1.000m |
Shipping Height | 0.500m |
Shipping Length | 0.800m |
Shipping Cubic | 0.400000000m3 |
